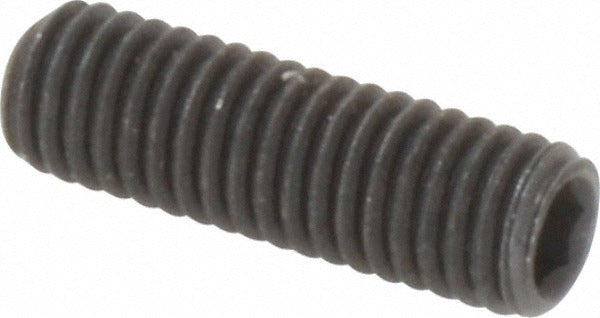

Value Collection 832054PR M5 X 0.80 X 16 Mm Flat Point Set Screw

Product Description

The VALUE COLLECTION 832054PR is a metric set screw designed for clamping and positioning applications where a flush or recessed fastener is required. It features a flat point geometry, which distributes clamping load across a surface without marring a shaft the way a cup or cone point would. The screw is manufactured from alloy steel to Grade 14.9 (45H), delivering high tensile and torsional strength suited for demanding industrial and mechanical assemblies. A black oxide finish provides mild corrosion resistance and reduces light reflection in service environments. Drive is via a 2.5 mm hex key. Installation and assembly are straightforward for machinists, maintenance technicians, and fabricators working with threaded fastener applications.

This set screw is sized M5 x 0.80 with an overall length of 16 mm, making it well suited for light-to-medium duty shaft collars, shaft couplings, pulleys, gears, and similar components where a flush-seating fastener is required. It conforms to DIN 913 and ISO 4026 dimensional standards, which govern flat-point hexagon socket set screws. Sold as individual pieces with a minimum order quantity of 100 units, this part is appropriate for production assembly, MRO stocking, or service shops that regularly service mechanical drive components.

Key Features

• Flat point geometry prevents shaft scoring and allows repositioning without surface damage
• Alloy steel construction at Grade 14.9 (45H) for high clamping torque capability
• Black oxide finish for mild corrosion resistance in indoor service environments
• Conforms to DIN 913 and ISO 4026 dimensional standards for consistent fitment
• 2.5 mm hex key drive for installation with standard allen wrenches or hex drivers
• Metric M5 x 0.80 thread for use in metrically threaded components

Compatibility

Designed as a standard DIN 913 and ISO 4026 flat-point hexagon socket set screw for use in any metrically threaded M5 x 0.80 tapped hole requiring a flush or recessed fastener installation.

Installation Notes

Installation is performed by machinists or maintenance technicians using a 2.5 mm hex key or driver. Ensure the receiving threaded hole is clean and free of debris before installation. Torque to the assembly specification for the mating component — do not rely on feel alone for Grade 14.9 fasteners, as overtorquing can damage softer shaft materials. De-energize and lock out any rotating or powered equipment before servicing components secured with set screws.
