Value Collection 831325PS Set Screw M16x2 25mm Cone Point

Product Description

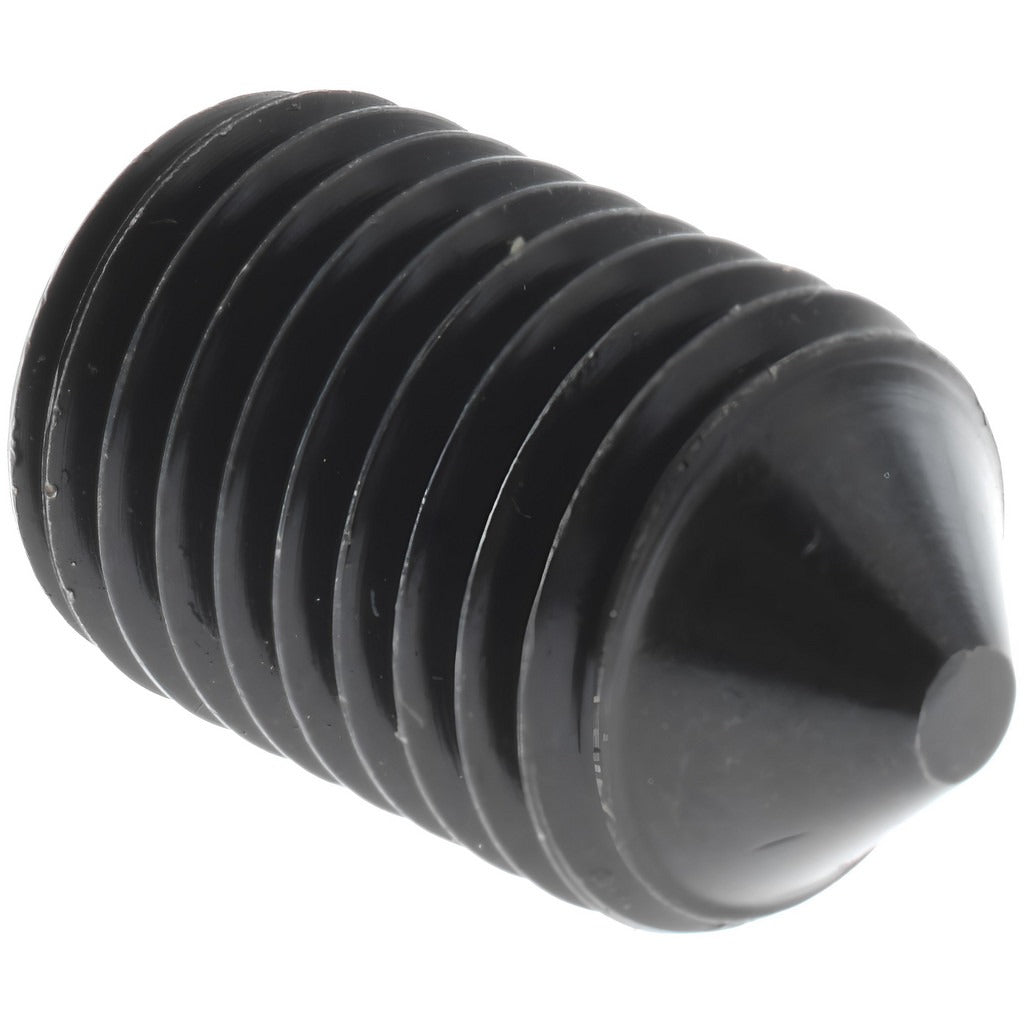

The VALUE COLLECTION 831325PS is an M16 x 2.00 x 25 mm cone point set screw manufactured from alloy steel to Grade 14.9 (45H). Set screws of this type are fully threaded, headless fasteners used to lock a component — such as a collar, gear, or pulley — onto a shaft by bearing the cone point directly into the mating surface. The 8 mm hex drive accepts a standard hex key for installation and removal. A black oxide finish provides mild corrosion resistance and reduces surface reflectivity. This fastener is specified to DIN 914 and ISO 4027 standards, making it a metric-grade industrial fastener suitable for demanding mechanical assemblies.

This set screw is used in general industrial, manufacturing, and mechanical maintenance applications where a secure, vibration-resistant shaft-to-hub connection is required. The cone point profile bites into the shaft surface to create a positive lock with high holding torque relative to flat or cup point designs. It is installed by machinists, millwrights, and maintenance technicians in equipment such as conveyor systems, pumps, motors, and power transmission assemblies. Sold individually.

Key Features

• M16 x 2.00 thread with 25 mm overall length — fully threaded headless design
• Cone point geometry for positive shaft engagement and high holding force
• Alloy steel construction, Grade 14.9 (45H) for high tensile and proof load strength
• 8 mm hex key drive for precise installation torque control
• Black oxide finish for mild corrosion protection and reduced light reflection
• Conforms to DIN 914 and ISO 4027 fastener standards

Compatibility

Designed as a metric-grade cone point set screw for use in any M16 x 2.00 threaded bore requiring DIN 914 or ISO 4027 compliant fasteners.

Installation Notes

Installation is performed using an 8 mm hex key. Ensure the threaded bore is clean and free of debris before driving the screw. The cone point will indent the mating shaft surface — verify that permanent shaft marking is acceptable for the application before use. Follow applicable machinery safety lockout and tagout procedures before servicing any assembly containing this fastener.
