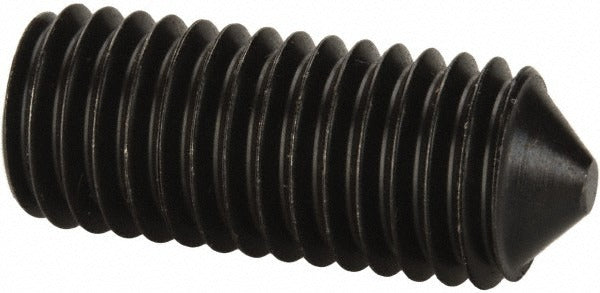

Value Collection 831196PS M12 Cone Point Set Screw Alloy Steel

Product Description

The VALUE COLLECTION 831196PS is an M12 x 1.75 x 30 mm cone point set screw manufactured from alloy steel to Grade 14.9 (45H). The cone point geometry concentrates clamping force at a single contact location, making it well suited for permanent or semi-permanent shaft and collar assemblies where the point is intended to seat into the mating surface. A black oxide finish provides mild corrosion resistance and reduces galling during installation. The hex socket drive requires a 6 mm hex key. This fastener conforms to DIN 914 and ISO 4027 dimensional standards and is sized in metric units throughout.

This set screw is used in mechanical assemblies where a threaded gripping fastener must secure a component to a shaft, rod, or bore without a protruding head. Typical applications include shaft collars, pulleys, gears, couplings, and similar rotating or sliding components in industrial, MRO, and OEM manufacturing environments. Machinists, millwrights, and maintenance technicians commonly install this fastener type. The cone point variant is preferred when a permanent or near-permanent bite into the shaft surface is acceptable or required by the design.

Key Features

• Cone point geometry seats into mating shaft surface for high holding force
• Alloy steel construction rated to Grade 14.9 (45H) for high tensile strength
• Black oxide finish provides mild corrosion resistance and reduces galling
• Hex socket drive with 6 mm hex key size for torque application in confined spaces
• Conforms to DIN 914 and ISO 4027 dimensional standards
• Metric thread and length measurements throughout

Compatibility

Designed as a metric DIN 914 and ISO 4027 compliant cone point set screw suitable for standard M12 x 1.75 threaded assemblies requiring a Grade 14.9 alloy steel fastener.

Installation Notes

Installation should be performed by a qualified machinist, millwright, or maintenance technician using a calibrated 6 mm hex key or hex bit driver. Ensure the mating shaft and threaded bore are clean and free of debris before driving the fastener. De-energize and lock out any machinery before servicing components that contain set screws. Do not substitute an incorrect hex key size, as rounding the socket drive will compromise the fastener and require extraction.
