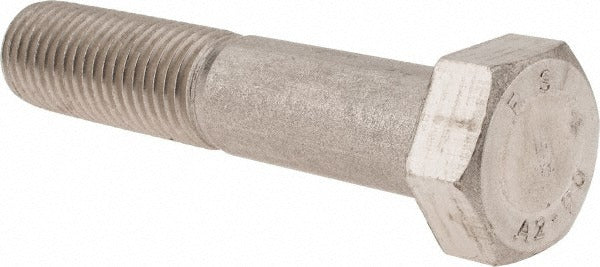

Value Collection 830064BR Hex Head Cap Screw M24x3 120mm

Product Description

The VALUE COLLECTION 830064BR is a metric hex head cap screw manufactured from 18-8 austenitic Grade A2 stainless steel. It carries an M24 x 3.00 thread profile with a 120 mm length under head and a partially threaded shank. The 36 mm hex drive size accommodates standard metric wrenches. Conforming to DIN 931 and DIN 933 standards, this fastener is suited for structural and mechanical assembly applications where corrosion resistance and dimensional accuracy are required. It is commonly installed by millwrights, pipefitters, maintenance technicians, and mechanical contractors working on industrial or commercial equipment.

This cap screw is appropriate for metric-fastened assemblies in industrial machinery, structural frameworks, process piping supports, and heavy equipment. Its Grade A2 stainless steel construction makes it a practical choice for outdoor, marine-adjacent, or chemically exposed environments where carbon steel fasteners would be susceptible to corrosion. The partial threading leaves a smooth shank section that aids in shear load applications and precise bolt alignment during assembly.

Key Features

• M24 x 3.00 metric thread profile for high-load fastening applications
• 120 mm length under head with partially threaded shank for shear-load capability
• 18-8 austenitic Grade A2 stainless steel construction for corrosion resistance
• 36 mm hex drive compatible with standard metric wrenches and sockets
• Conforms to DIN 931 and DIN 933 dimensional standards

Compatibility

Designed as a DIN 931 and DIN 933 conforming metric hex head cap screw suitable for M24 x 3.00 threaded holes in industrial and commercial mechanical assemblies.

Installation Notes

Installation should be performed by a qualified mechanic or maintenance technician using a calibrated metric torque wrench and the appropriate 36 mm socket or open-end wrench. Verify that mating threaded holes or nuts are clean, undamaged, and dimensionally compatible with the M24 x 3.00 thread standard before installation. Apply appropriate thread lubricant or anti-seize compound as required by the assembly specification to prevent galling, which is a known risk with stainless steel fasteners under high torque.
