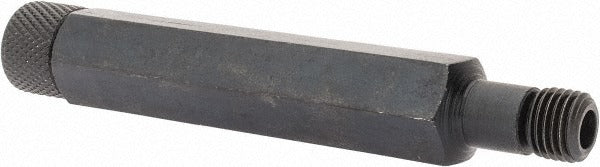

Value Collection 830-3125 Transfer Screw Set 3/8-24 7 Piece

Product Description

The VALUE COLLECTION 830-3125 is a 7-piece transfer screw set designed for locating and transferring hole center points from one workpiece to another with precision. The set includes 6 transfer screws threaded to 3/8-24 and 1 holder for secure positioning during use. Made from steel, these screws are suited for layout and machining tasks where accurate hole alignment is required. Machinists, tool and die workers, and general metalworkers install these as part of standard layout operations in job shops and maintenance environments.

Transfer screw sets are used when a drilled and tapped hole in one part must be precisely matched in a mating part. The screw is threaded into the existing tapped hole, the mating part is pressed against the protruding point, and the center location is transferred. This set covers 3/8-24 thread applications and is appropriate for bench work, fixture building, and general machining layout tasks in both production and repair settings.

Key Features

• 7-piece set includes 6 transfer screws and 1 holder for complete layout use
• 3/8-24 thread specification for standard fine-thread applications
• Steel construction for durability in metalworking environments
• Holder keeps screws organized and accessible during layout operations
• Compact set weight of 0.15 pounds for easy portability in a toolbox

Compatibility

Designed as a standard replacement or supplemental set for 3/8-24 fine-thread transfer screw applications in general metalworking and machining layout work.

Installation Notes

Transfer screws are installed by hand or with the supplied holder into an existing tapped hole. The mating workpiece is then carefully pressed or tapped against the screw point to mark the center location. No power tools are required. Ensure both workpieces are clean and free of chips before transferring to maintain location accuracy.
