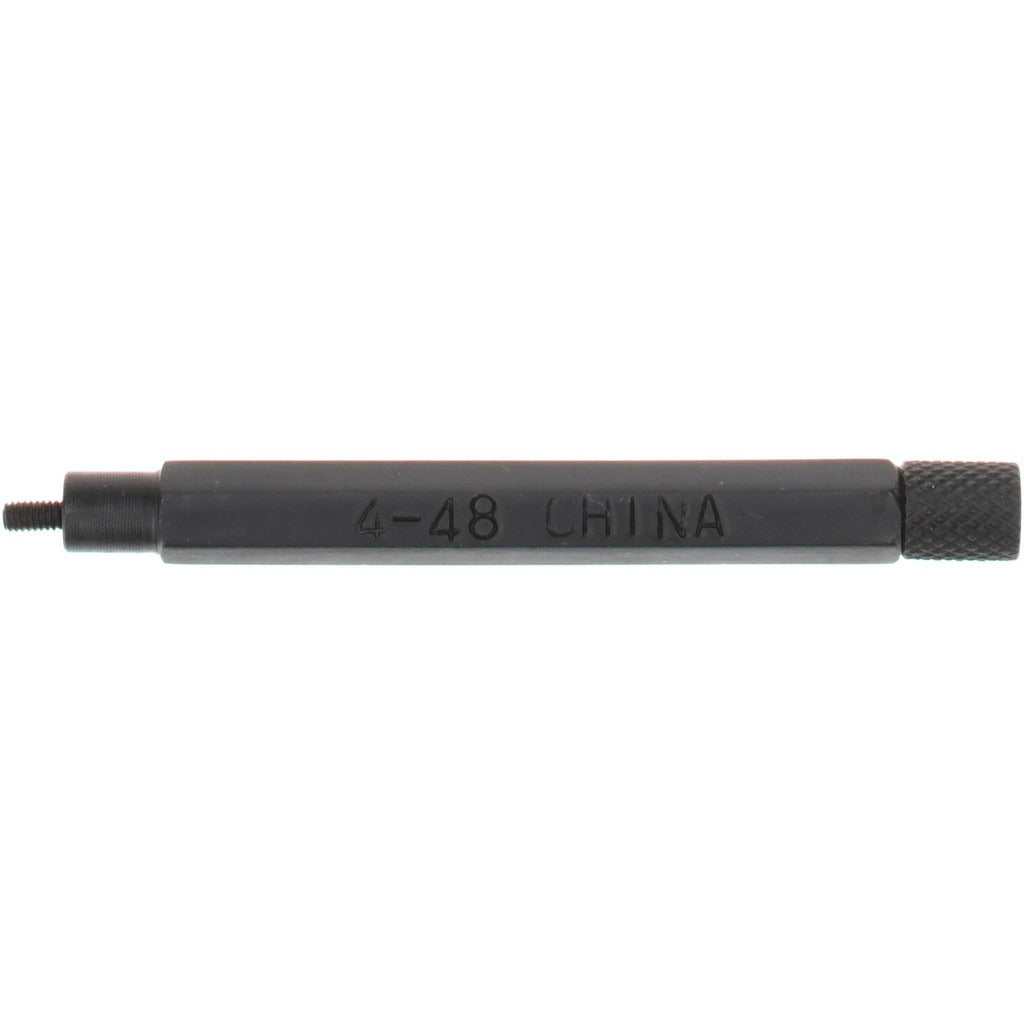

Value Collection 830-3114 4-48 Steel Transfer Screw Set 7 Pc

Product Description

The VALUE COLLECTION 830-3114 is a 7-piece 4-48 transfer screw set designed for locating and transferring hole positions from one workpiece to another with precision. The set includes six transfer screws and one holder, all manufactured from steel for durability in shop and field use. Transfer screws are threaded into existing tapped holes and then pressed against a mating surface to mark exact center points, eliminating layout error. This set is sized for the 4-48 thread specification, making it suited for fine-thread applications common in instrument work, toolmaking, and light mechanical assembly.

This transfer screw set is used in machine shops, tool rooms, and mechanical assembly environments where accurate hole transfer from a tapped component to a mating part is required. The 4-48 thread size targets small-diameter, fine-pitch applications typical in precision instruments, fixtures, and light mechanical assemblies. The included holder keeps screws organized and allows controlled seating during transfer operations.

Key Features

• 7-piece set includes 6 transfer screws and 1 holder
• 4-48 thread specification for fine-pitch, small-diameter applications
• Steel construction for shop-grade durability
• Enables accurate hole-center transfer without layout tools
• Compact and lightweight at 0.08 pounds for portability

Compatibility

Designed for use in tapped 4-48 threaded holes in metalworking, toolmaking, and precision assembly applications.

Installation Notes

Transfer screws are threaded by hand into an existing tapped hole using the included holder, then the mating workpiece is pressed firmly against the protruding screw tips to mark center points. No power tools are required. Ensure workpieces are clean and burr-free before transfer to maintain location accuracy. Handle screw tips with care to avoid damage that would compromise marking precision.
