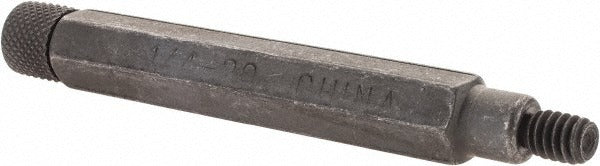

Value Collection 830-3023 1/4-20 Steel Transfer Screw Set

Product Description

The VALUE COLLECTION 830-3023 is a 7-piece 1/4-20 steel transfer screw set used to locate and transfer hole positions from one workpiece to another with precision. The set includes six transfer screws and one holder, allowing machinists and fabricators to mark mating hole centers without layout tools or measurement. Transfer screws are threaded into existing tapped holes, then the mating part is pressed against the protruding points to transfer the exact hole pattern. This set is suited for toolroom work, fixture building, and general machining tasks where accurate hole-pattern transfer is required.

This set is intended for use in machine shops, fabrication shops, and maintenance environments where 1/4-20 threaded holes are common. It is a standard hand tool used by machinists, tool and die makers, and maintenance technicians. The 1/4-20 thread size makes it compatible with a wide range of common workholding and fixture applications in both production and repair settings.

Key Features

• 7-piece set includes 6 transfer screws and 1 holder for organized use
• 1/4-20 thread size fits standard tapped holes in fixtures and workpieces
• Steel construction provides durability and resistance to deformation under pressing force
• Compact holder keeps screws organized and protected between uses
• Eliminates the need for manual measurement when transferring hole patterns

Compatibility

Designed as a standard replacement or supplemental set for 1/4-20 transfer screw applications in general machining and fixture work.

Installation Notes

Transfer screws are installed by hand or with a suitable driver into existing tapped holes in the reference part. No power tools are required for standard installation. The mating workpiece is pressed firmly over the protruding screw points to mark center locations before drilling. Always deburr marked locations before drilling to ensure accurate hole placement.
