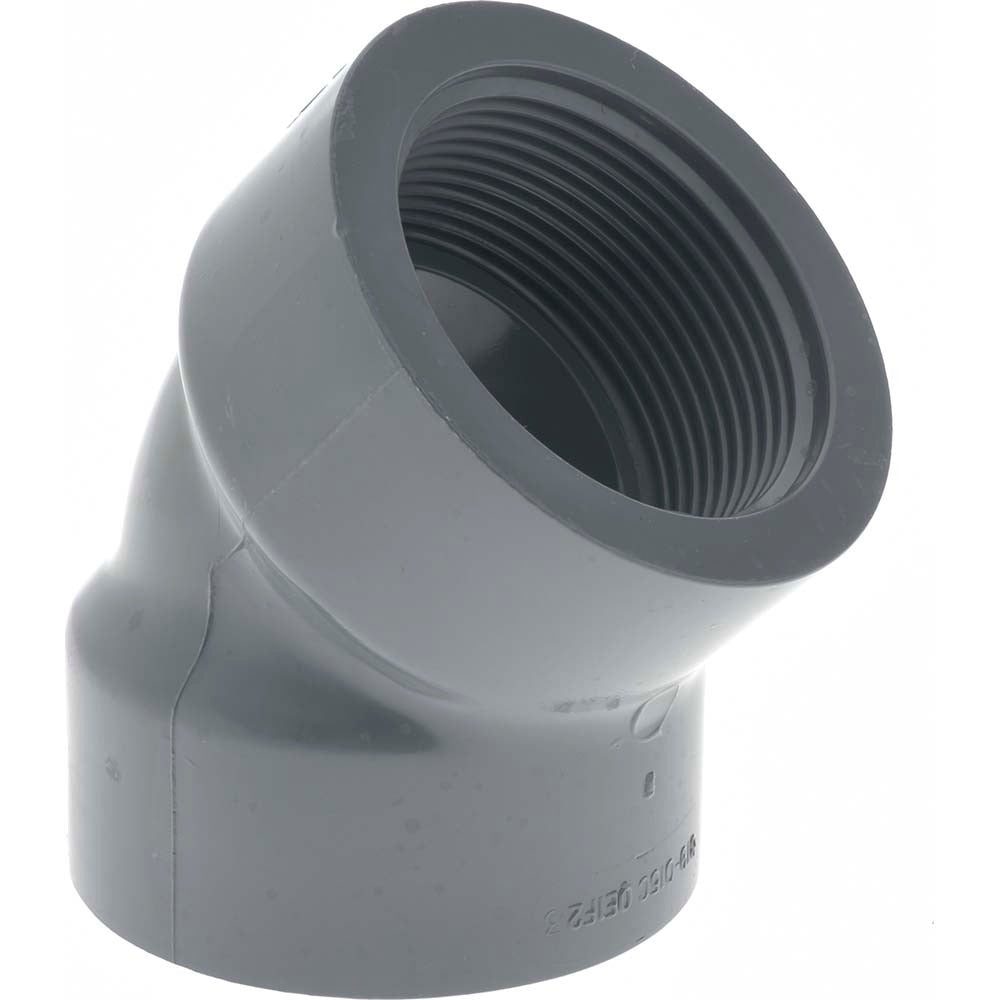

Value Collection 819-015C Cpvc 45 Elbow 1-1/2 in Sch 80

Product Description

The VALUE COLLECTION 819-015C is a Schedule 80 CPVC 45-degree elbow fitting designed for threaded pipe connections in pressure piping systems. With female iron pipe thread (FIPT) connections on both ends, this fitting accepts threaded pipe directly without requiring solvent cement at the joint interface. At 1-1/2 inches in size, it fits standard 1-1/2-inch pipe runs and is suited for systems where directional changes at 45 degrees are needed. CPVC construction provides chemical resistance and higher temperature tolerance compared to standard PVC, making it a common choice for hot and cold water distribution and industrial fluid handling applications.

This fitting is used in residential and light commercial plumbing systems where Schedule 80 pressure ratings are specified. It is appropriate for hot water lines, chemical distribution, and industrial process piping where CPVC material compatibility is required. The FIPT x FIPT configuration allows installation into existing threaded systems without additional adapters. Licensed plumbers and pipefitters install this type of fitting in new construction and retrofit applications where code requires Schedule 80 rated components.

Key Features

• Schedule 80 pressure rating for higher-demand plumbing and industrial applications
• CPVC material offers elevated temperature resistance compared to standard PVC
• FIPT x FIPT end connections for straightforward threaded installation
• 1-1/2-inch fitting size fits standard pipe of the same nominal diameter
• 45-degree angle allows gradual directional changes with lower flow restriction than a 90-degree elbow

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 CPVC threaded piping systems using 1-1/2-inch nominal pipe size.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off and depressurize the water or fluid supply before making any connections. Apply an appropriate thread sealant or PTFE tape to all male threads before assembly, and tighten to hand-tight plus the appropriate number of turns per fitting manufacturer standards without over-torquing CPVC threads, as the material is susceptible to cracking under excess stress. Do not use petroleum-based thread compounds that are incompatible with CPVC.
