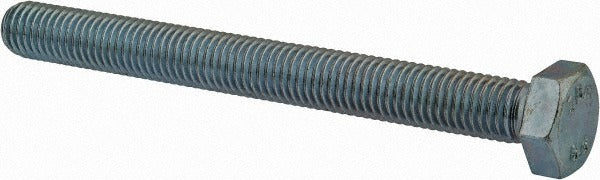

Value Collection 815889PR M12x1.75 120mm Hex Cap Screw

Product Description

The VALUE COLLECTION 815889PR is a fully threaded hex head cap screw engineered to metric standards for structural and mechanical fastening applications. Manufactured from Grade 8.8 steel with a zinc-plated finish, this fastener offers solid tensile strength and corrosion resistance suitable for general industrial and equipment assembly work. It measures M12 x 1.75 thread pitch with a 120 mm length under the head and a 19 mm hex drive. Conforming to DIN 933 and ISO 4017 standards, it delivers consistent dimensional accuracy for controlled-tolerance assemblies. Installers and maintenance technicians working in metric environments will find this screw a reliable off-the-shelf choice.

This cap screw is suited for a wide range of industrial, commercial, and mechanical assembly applications where metric fasteners are specified. Typical uses include equipment fabrication, structural steel connections, machinery maintenance, and fixture assembly. The fully threaded shank provides clamping engagement along the entire fastener length, making it appropriate for through-bolt configurations and shorter clamped material stacks. The zinc plating provides baseline corrosion protection for indoor and light-duty outdoor applications where bare steel would be inadequate.

Key Features

• M12 x 1.75 thread size with 120 mm length under head for metric assemblies
• Grade 8.8 steel construction providing high tensile strength for structural fastening
• Fully threaded shank conforming to DIN 933 and ISO 4017 dimensional standards
• Zinc-plated finish for corrosion resistance in light-duty service environments
• 19 mm hex drive compatible with standard metric wrenches and sockets

Compatibility

Designed as a standard metric hex head cap screw per DIN 933 and ISO 4017, compatible with M12 x 1.75 metric nuts, threaded inserts, and tapped holes of the same thread specification.

Installation Notes

Installation is performed by millwrights, maintenance technicians, or other qualified trades familiar with metric fastener specifications. Power down and de-energize any associated equipment before beginning fastener replacement or assembly work. Use a calibrated torque wrench and apply torque per the equipment manufacturer's specification for Grade 8.8 M12 fasteners. Do not mix metric and imperial fastener standards in the same joint, and inspect threads for damage before installation.
