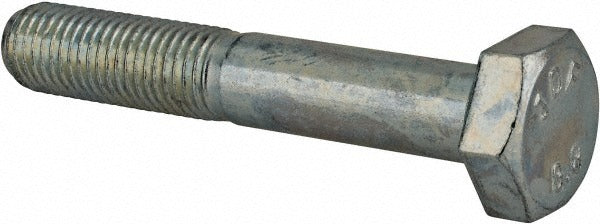

Value Collection 815400PS M10 X 1.25 X 60mm Hex Cap Screw

Product Description

The Value Collection 815400PS is a metric hex head cap screw designed for general-purpose fastening in mechanical assemblies, machinery, and structural applications. Manufactured from Grade 8.8 steel with a zinc-plated finish, this fastener delivers a balance of tensile strength and corrosion resistance suited to both indoor and light outdoor environments. The partially threaded shank measures 60 mm under the head with an M10 x 1.25 thread pitch and a 17 mm hex drive. It conforms to DIN 960 and ISO 8765 dimensional standards. Machinists, millwrights, and maintenance technicians install this type of fastener across a wide range of industrial and commercial equipment.

This screw is appropriate for metric-threaded assemblies requiring a fine 1.25 mm pitch on an M10 diameter. The partially threaded shank provides a smooth bearing surface in clearance holes, making it well suited for bolted joints where shank engagement is needed for load transfer. Typical applications include equipment frames, brackets, flanges, and general structural connections in manufacturing, automotive service, and industrial maintenance settings.

Key Features

• M10 x 1.25 fine thread pitch conforming to DIN 960 and ISO 8765 standards
• Grade 8.8 steel construction providing high tensile strength for demanding fastening applications
• Zinc-plated finish for corrosion resistance in general-purpose environments
• Partially threaded shank for accurate shear load transfer in clearance-hole joints
• 17 mm hex drive compatible with standard metric wrenches and sockets
• 60 mm length under head for medium-depth fastening requirements

Compatibility

Designed as an OEM-style metric fastener replacement or new-installation screw for assemblies with M10 x 1.25 fine-thread tapped holes conforming to DIN 960 or ISO 8765 specifications.

Installation Notes

Installation should be performed by a qualified mechanic or maintenance technician familiar with metric fastener standards. Always verify that the mating thread pitch and diameter match M10 x 1.25 before installation to avoid cross-threading. Use a calibrated torque wrench to achieve proper clamp load for the application and joint material. Do not apply thread-locking compounds or anti-seize unless specified by the equipment manufacturer for the joint being serviced.
