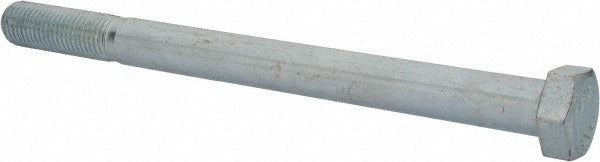

Value Collection 815208PR M16x2 200mm Hex Cap Screw Gr8.8

Product Description

The Value Collection 815208PR is a metric hex head cap screw designed for general-purpose fastening in mechanical assemblies, structural connections, and equipment fabrication. It features an M16 x 2.00 thread profile with a 200 mm length under head and is partially threaded, which provides a smooth shank section for shear-load applications. Manufactured from Grade 8.8 steel, the screw delivers a reliable combination of tensile strength and ductility suited for demanding installations. The zinc-plated finish provides baseline corrosion resistance in indoor and light-exposure environments. A 24 mm hex drive head allows installation with standard metric hex tooling.

This fastener is appropriate for use in industrial machinery, structural steel fabrication, automotive assemblies, and general trade work requiring metric-standard hardware. Its compliance with DIN 931 and ISO 4014 dimensional standards makes it a direct fit wherever those specifications are called out on engineering drawings or in maintenance procedures. The partially threaded shank design is particularly suited to bolted joints where the grip length must pass through clearance holes in mating components before engaging threaded material.

Key Features

• M16 x 2.00 metric thread, 200 mm length under head — partially threaded for shear-zone applications
• Grade 8.8 steel construction for high tensile strength with controlled ductility
• Zinc-plated finish for corrosion resistance in standard indoor and light-duty environments
• 24 mm hex head size — compatible with standard metric wrenches and sockets
• Conforms to DIN 931 and ISO 4014 dimensional standards

Compatibility

Designed as a DIN 931 and ISO 4014 compliant M16 x 2.00 partially threaded hex head cap screw, suitable for any application calling out those metric fastener standards.

Installation Notes

Installation should be performed by a qualified mechanic, millwright, or tradesperson using a calibrated torque wrench and the appropriate 24 mm metric socket or open-end wrench. Always confirm mating thread condition and material grade compatibility before assembly. Refer to applicable engineering specifications or OEM torque tables for the correct clamp load — do not estimate torque values for structural or safety-critical joints. De-energize, depressurize, or otherwise isolate any equipment before disassembling and reassembling fastened joints.
