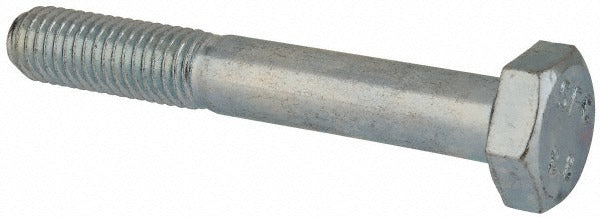

Value Collection 815094PR M10x1.5x70mm Hex Cap Screw Grade 8.8

Product Description

The VALUE COLLECTION 815094PR is a metric hex head cap screw engineered for general mechanical assembly and structural fastening applications. Built to Grade 8.8 steel specifications, this screw delivers reliable tensile strength suitable for demanding industrial and commercial fastening tasks. The partial threading design provides a smooth shank section under the head, which resists shear forces and allows for precise clamping in bolted joint assemblies. With an M10 x 1.50 thread profile and a 70 mm length under head, this fastener meets the dimensional requirements of DIN 931 and ISO 4014 standards. A zinc-plated finish provides a baseline level of corrosion resistance for general-purpose indoor and light-duty outdoor applications.

This fastener is commonly used in machinery assembly, equipment mounting, structural steel connections, and maintenance-repair-operations across manufacturing, construction, and industrial facilities. The 17 mm hex drive size is compatible with standard metric wrenches and sockets. The partial thread configuration makes it appropriate for through-bolt applications where a full-grip shank is preferred. Installers working with metric hardware in compliance with DIN or ISO standards will find this screw a straightforward drop-in for M10 applications requiring a 70 mm under-head length.

Key Features

• Grade 8.8 steel construction provides high tensile and yield strength for structural fastening
• M10 x 1.50 metric thread profile conforms to DIN 931 and ISO 4014 standards
• Partially threaded shank resists lateral shear loads and enables precise joint clamping
• Zinc-plated finish offers baseline corrosion protection for general-purpose use
• 17 mm hex drive accepts standard metric sockets and open-end wrenches
• 70 mm length under head suits a wide range of through-bolt and tapped-hole assemblies

Compatibility

Designed as a standard metric replacement fastener for M10 x 1.50 partially threaded hex head applications conforming to DIN 931 and ISO 4014 dimensional specifications.

Installation Notes

Installation should be performed by qualified mechanical or maintenance technicians using calibrated torque tools appropriate for Grade 8.8 M10 fasteners. Always de-energize or lock out equipment before replacing fasteners in live machinery per applicable safety procedures. Do not substitute this metric fastener in applications calling for inch-series hardware. Inspect threads and mating holes for damage or contamination before assembly to ensure proper engagement and clamping force.
