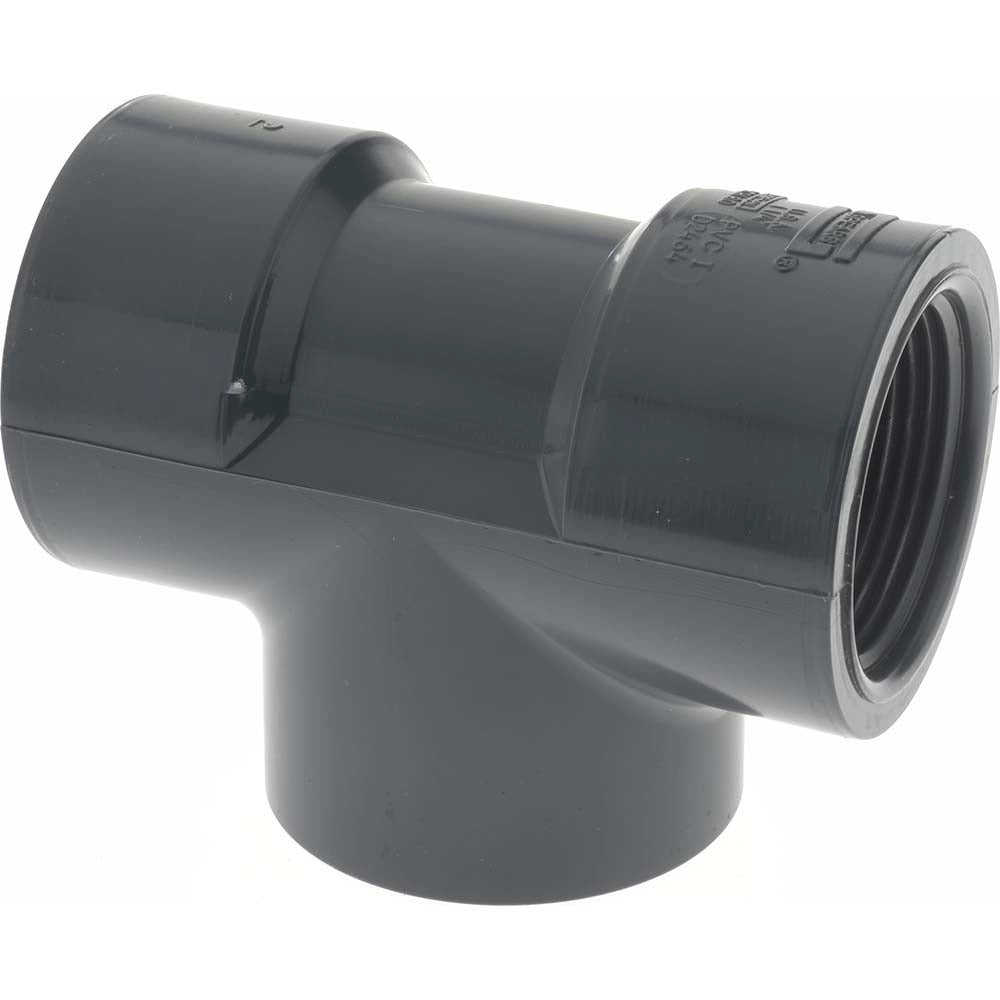

Value Collection 805-012 Pvc Pipe Tee 1-1/4 in Schedule 80 Fipt

Product Description

The VALUE COLLECTION 805-012 is a Schedule 80 PVC pipe tee designed for use in pressure-rated piping systems where a branch takeoff is required. Sized at 1-1/4 inches and threaded Female Iron Pipe Thread (FIPT) on all three ports, this fitting accepts male-threaded pipe ends at the run and branch connections. Schedule 80 wall thickness provides higher pressure ratings and greater impact resistance compared to Schedule 40, making it suitable for more demanding service conditions. Licensed plumbers and pipefitters install this fitting in both above-grade and below-grade applications where PVC is an approved material.

This tee is used in residential and light commercial plumbing, irrigation, chemical distribution, and industrial process piping where PVC construction is appropriate. The FIPT x FIPT x FIPT configuration allows connection to standard male-threaded PVC, CPVC, or compatible nipples and adapters. It is well suited for branch lines in cold-water supply, recirculating systems, and non-solvent chemical lines operating within PVC temperature and pressure limits. Plumbers, pipefitters, and irrigation technicians are the primary installers.

Key Features

• Schedule 80 PVC construction for higher pressure ratings than Schedule 40
• 1-1/4 inch nominal size with FIPT x FIPT x FIPT end connections on all three ports
• Threaded ends eliminate the need for solvent cementing at each connection point
• PVC material resists corrosion, scale, and many common chemicals
• Lightweight at 0.87 pounds, easing handling in overhead or confined-space installs

Compatibility

Designed as an OEM-style replacement or new-installation fitting compatible with 1-1/4 inch nominal Schedule 80 PVC threaded piping systems using standard FIPT connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with local plumbing codes and the IPC. Depressurize and drain the affected piping section completely before removing any existing fitting. Apply an appropriate thread sealant or PTFE tape to the male threads being joined into the FIPT ports. Do not over-tighten threaded PVC fittings, as PVC threads are susceptible to cracking under excessive torque.
