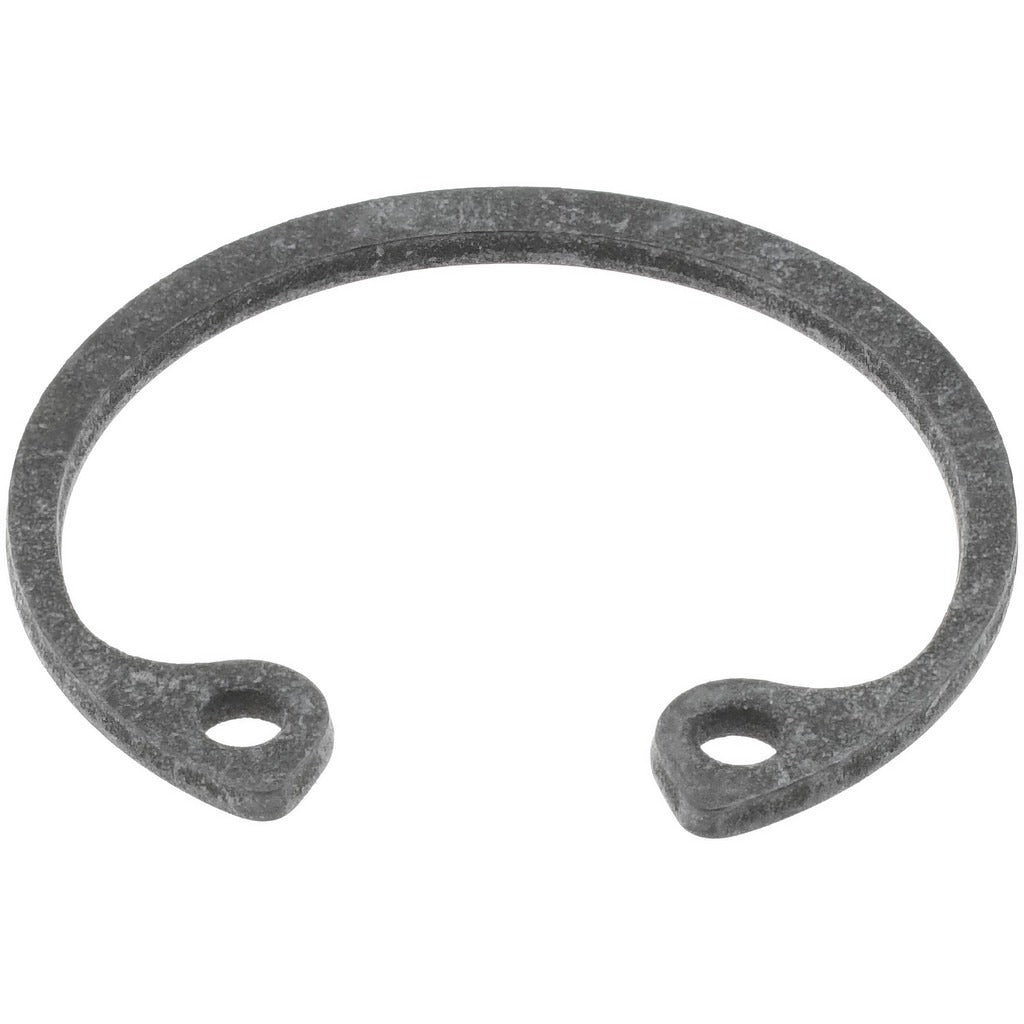

Value Collection 80122492 Internal Snap Retaining Ring

Product Description

The VALUE COLLECTION 80122492 is a spring steel internal snap retaining ring designed to secure components within a bored housing or assembly. With an 11/16-inch nominal bore diameter and a free outer diameter of 0.763 inches, this ring seats into a machined internal groove to prevent axial movement of shafts, pins, or bearings. The ring measures 0.035 inches thick and fits a groove width of 0.039 inches with a groove depth of 0.022 inches. A phosphate finish provides baseline corrosion resistance and improved lubrication retention. This fastener is installed by machinists, maintenance technicians, and mechanical assemblers across a broad range of industrial and mechanical applications.

This internal retaining ring is suited for use in light machinery, pumps, gearboxes, motors, and general mechanical assemblies where a reliable internal groove-mounted retainer is required. The 11/16-inch bore size is common in small-to-mid-range shaft and bore configurations found in both OEM manufacturing and field repair environments. Sold in packages of 20 pieces, this ring is appropriate for shop stock, repair kits, and low-volume production use.

Key Features

• Spring steel construction provides consistent snap force and durability under load
• Phosphate finish improves corrosion resistance and surface lubricity
• 11/16-inch nominal bore diameter with a free OD of 0.763 inches
• Ring thickness of 0.035 inches fits a groove width of 0.039 inches and groove depth of 0.022 inches
• Groove diameter tolerance of -0.002 to 0.002 inches ensures precise fitment
• Packaged in quantities of 20 for shop stock or batch repair use

Compatibility

Designed as a standard internal snap retaining ring for use in machined internal grooves with an 11/16-inch bore diameter, suitable for general industrial and mechanical assembly applications.

Installation Notes

Internal snap rings require internal snap ring pliers for proper installation and removal. Ensure the mating groove dimensions match the ring specifications before installation, as improper groove fit can cause ring failure under load. Verify the housing bore and groove are free of burrs or debris before seating the ring. Always wear eye protection when installing or removing snap rings, as they can release unexpectedly under spring tension.
