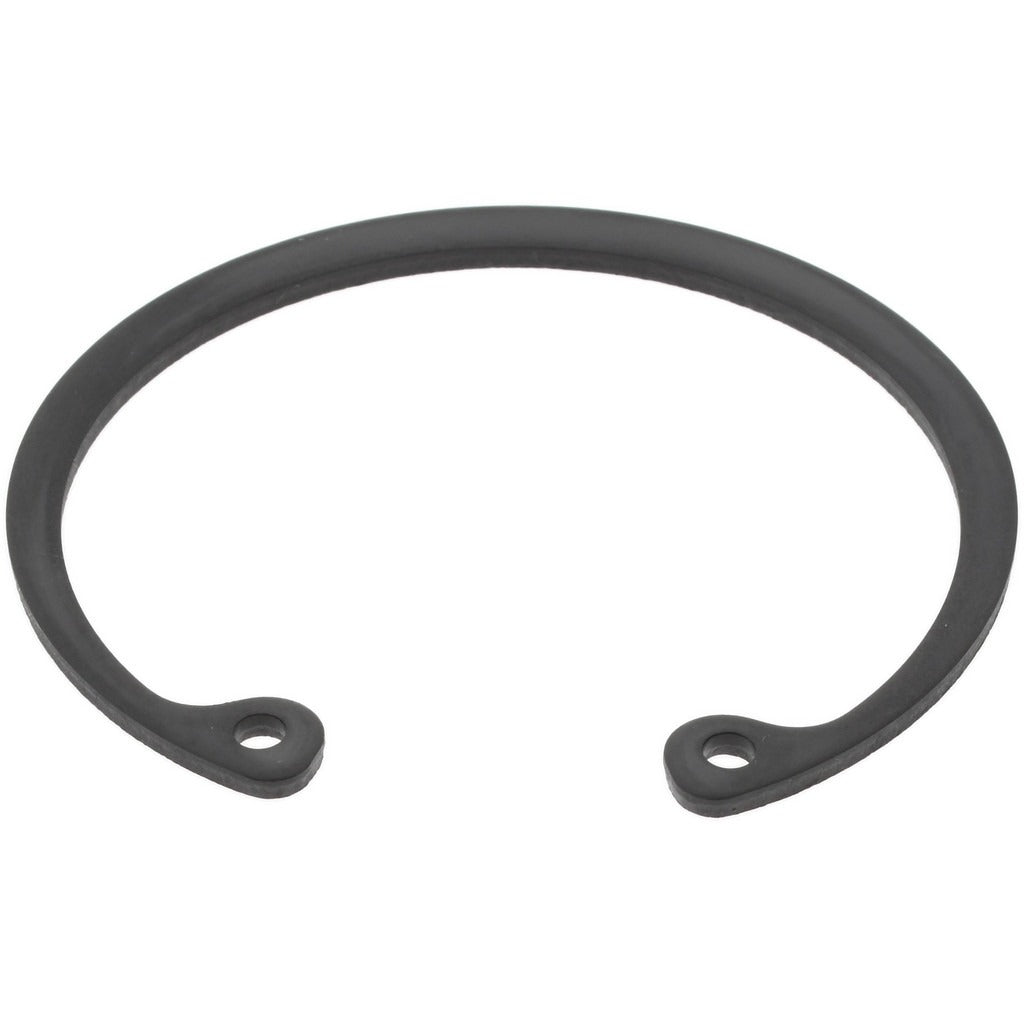

Value Collection 80122385 Internal Snap Retaining Ring

Product Description

The VALUE COLLECTION 80122385 is an internal snap retaining ring designed to secure components within a bored housing or assembly. Manufactured from spring steel with a phosphate finish, this ring seats into a machined internal groove to prevent axial movement of shafts, bearings, and other retained parts. It fits a 1-7/8 inch nominal bore diameter and has a free outside diameter of 2.072 inches. The groove dimensions are 0.068 inches wide by 0.057 inches deep, with a ring thickness of 0.062 inches. This type of fastener is standard hardware for mechanical assemblies across HVAC, plumbing, pump, and general industrial applications.

Internal snap retaining rings of this size are used in a wide range of mechanical and industrial assemblies where a positive internal stop is required. Typical applications include motor housings, pump bodies, gearboxes, valve bodies, and bearing bores in both residential and commercial equipment. The 1-7/8 inch bore size suits mid-range shaft and housing assemblies. Sold in a package quantity of 10 with a minimum order quantity of 1 package.

Key Features

• Internal snap ring design seats into a machined internal groove for positive axial retention
• Spring steel construction provides reliable snap engagement and consistent ring tension
• Phosphate finish offers mild corrosion resistance for typical indoor mechanical environments
• 1-7/8 inch nominal bore diameter with 2.072 inch free outside diameter
• Groove width tolerance of 0.000 to 0.004 inches and ring thickness tolerance of -0.003 to 0.003 inches for precision fit
• Package quantity of 10 rings per unit

Compatibility

Designed as an OEM-style internal retaining ring for mechanical assemblies requiring a 1-7/8 inch bore groove with a 0.068 inch groove width and 0.057 inch groove depth.

Installation Notes

Internal snap retaining rings of this type are installed by machinists, millwrights, and mechanical technicians using internal snap ring pliers sized for the application. De-energize and lock out all equipment before servicing any assembly containing retaining rings. Confirm groove dimensions match the ring specifications before installation to avoid improper seating or ring failure under load. Do not reuse a ring that has been visibly deformed or over-expanded during removal.
