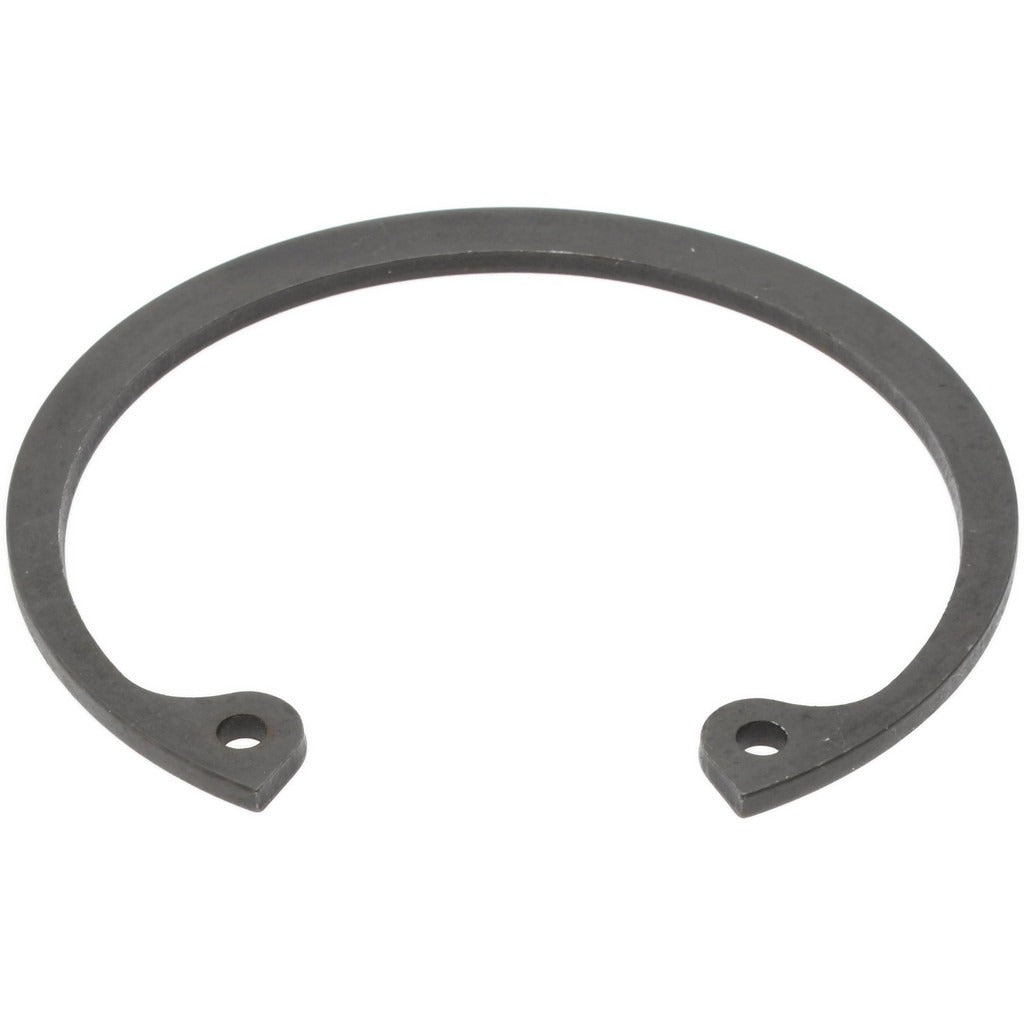

Value Collection 80122369 Internal Snap Retaining Ring

Product Description

The VALUE COLLECTION 80122369 is an internal snap retaining ring designed to secure components within a bored housing or bore assembly. Manufactured from spring steel with a phosphate finish, this ring seats into a machined internal groove to prevent axial movement of shafts, pins, or other retained parts. It is sized for a 1-3/4 inch nominal bore diameter with a free outer diameter of 1.942 inches. Ring thickness is 0.062 inches and groove width is 0.068 inches with a groove depth of 0.054 inches. Machinists, maintenance technicians, and mechanical assemblers install this type of ring across a wide range of industrial and mechanical applications.

This retaining ring is suited for use in housings, bores, and cylindrical assemblies where a reliable internal groove-mounted fastener is required. It is appropriate for light to moderate load applications in general mechanical, HVAC equipment assemblies, pump housings, and similar industrial hardware. The phosphate finish provides a degree of corrosion resistance in typical indoor or protected environments. This item is sold in a package quantity of 10 rings per order.

Key Features

• Internal snap ring design seats in a machined bore groove for axial retention
• Spring steel construction provides consistent snap force and durability
• Phosphate finish for added surface protection
• 1.942 inch free outer diameter for 1-3/4 inch nominal bore sizing
• Groove width of 0.068 inches with a depth of 0.054 inches for precise fitment
• Package of 10 rings per order with a minimum order quantity of 1

Compatibility

Designed as a standard internal snap retaining ring for use in bored housings and cylindrical assemblies requiring a 1-3/4 inch nominal internal groove-mount retainer.

Installation Notes

Internal snap retaining rings require proper snap ring pliers sized for internal rings to install and remove safely — do not use open-jaw pliers or improvised tools, as the ring may slip and cause injury. Verify that the groove dimensions of the housing match the ring specifications before installation. Ensure the bore and groove are clean and free of debris before seating the ring. Depressurize or de-energize the assembly before performing any retaining ring service.
