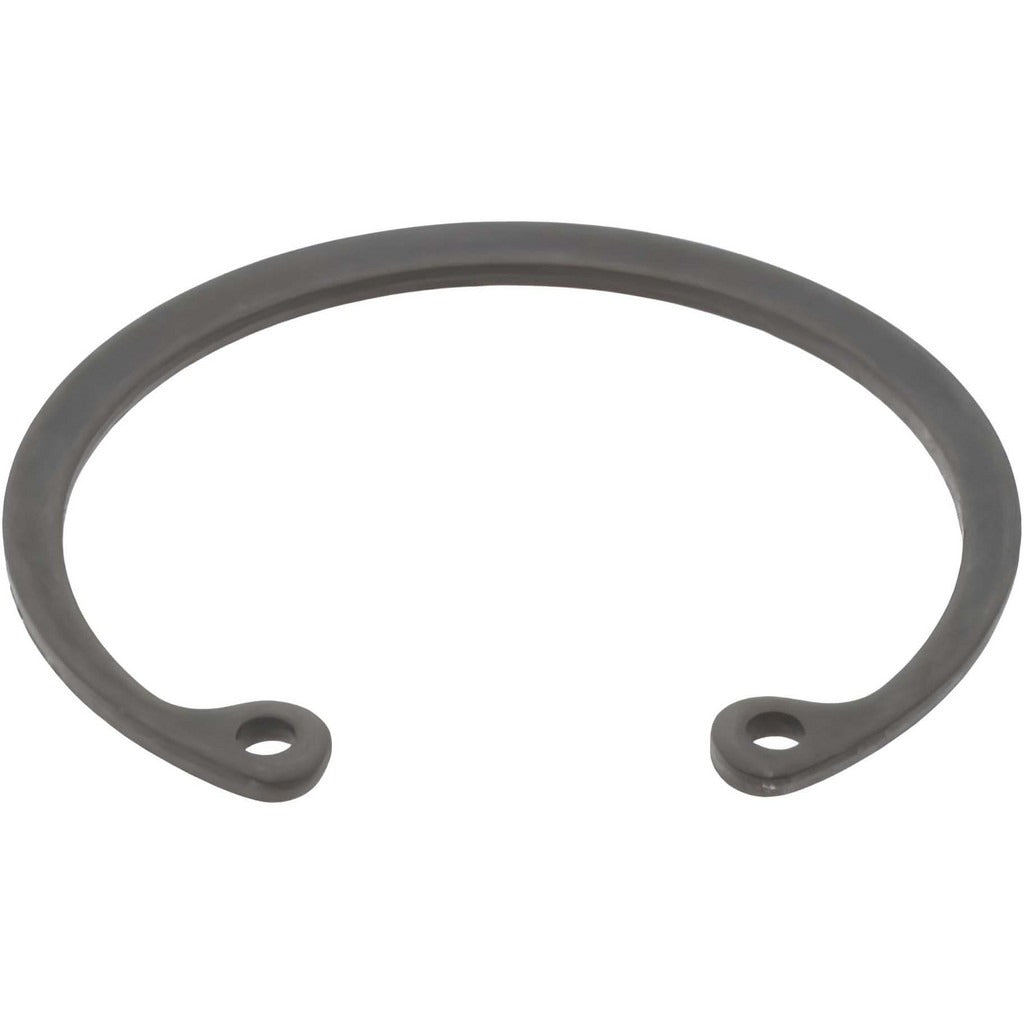

Value Collection 80122302 Internal Snap Retaining Ring

Product Description

The VALUE COLLECTION 80122302 is an internal snap retaining ring designed to secure components within a bored housing or bore assembly. Manufactured from spring steel with a phosphate finish, this ring seats into a machined internal groove to prevent axial movement of shafts, bearings, or other retained parts. It is sized for a 1.375-inch nominal bore diameter, features a free outer diameter of 1.526 inches, a ring thickness of 0.05 inches, and a groove width of 0.056 inches with a groove depth of 0.043 inches. Machinists, maintenance technicians, and assembly professionals install this type of ring across a wide range of mechanical and industrial applications.

This internal retaining ring is suited for use in gearboxes, motors, pumps, hydraulic cylinders, and general mechanical assemblies where a positive internal stop is required. The phosphate finish provides a base level of corrosion resistance and surface lubricity, making it appropriate for both dry and lightly lubricated bore environments. Each package contains 15 rings, allowing for multiple installations or replacements from a single order.

Key Features

• Spring steel construction provides consistent radial tension and reliable retention force
• Phosphate finish improves corrosion resistance and reduces galling during installation
• 1.375-inch nominal bore diameter with a free OD of 1.526 inches
• Groove width of 0.056 inches and groove depth of 0.043 inches for precise fitment
• Ring thickness of 0.05 inches for compatibility with standard internal groove profiles
• Packaged in quantities of 15 rings per order

Compatibility

Designed as an OEM-style internal snap retaining ring for mechanical assemblies requiring a 1.375-inch bore diameter groove with a 0.056-inch groove width and 0.043-inch groove depth.

Installation Notes

Internal snap retaining rings are installed by mechanical technicians using internal snap ring pliers sized to match the ring tip holes. The housing bore and groove must be clean and free of debris before installation. Always de-energize and lock out any machinery before servicing components that incorporate retaining rings. Verify groove diameter tolerances against the specified range of -0.004 to 0.005 inches before installation to ensure proper seating and retention.
