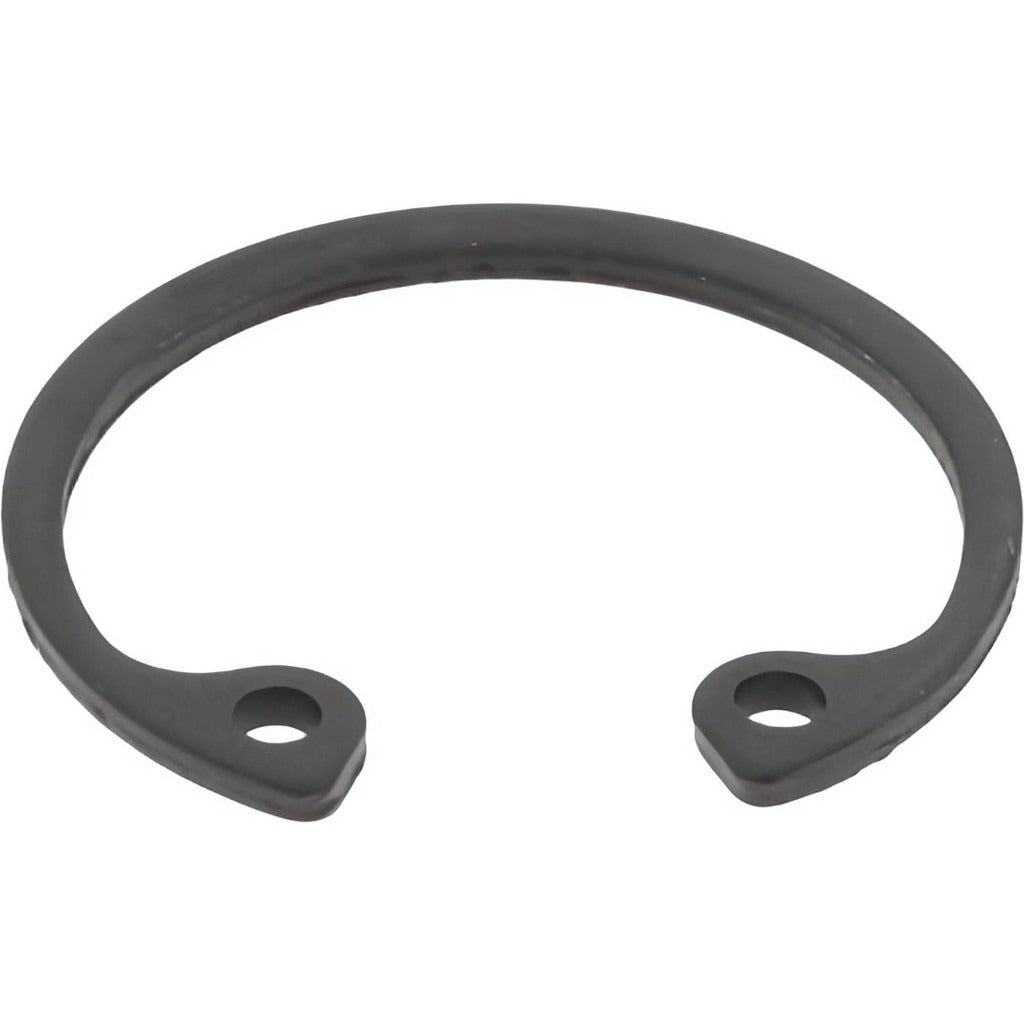

Value Collection 80122203 Internal Snap Ring 13/16 in Bore 20pk

Product Description

The VALUE COLLECTION 80122203 is an internal snap retaining ring designed to seat in a machined groove inside a bore to secure shafts, pins, and assemblies against axial movement. Made from spring steel with a phosphate finish, this ring provides reliable retention in mechanical assemblies exposed to moderate corrosion and wear. The bore diameter is 13/16 inches with a nominal size of 13/16 inches. Ring thickness is 0.042 inches and the groove width is 0.046 inches. The free outside diameter measures 0.901 inches. This type of fastener is installed and removed by machinists, maintenance technicians, and assembly mechanics working on pumps, motors, gearboxes, and similar rotating equipment.

Internal snap retaining rings of this size are commonly used in light-duty to medium-duty mechanical assemblies across HVAC equipment, pump housings, electric motor end caps, and general industrial machinery. The 13/16 inch bore size suits compact rotating assemblies where positive axial retention is required without threaded fasteners. This part is sold in a package quantity of 20, making it suitable for shop stock or service kit replenishment.

Key Features

• Spring steel construction provides consistent snap force and long service life
• Phosphate finish offers mild corrosion resistance for indoor and protected outdoor applications
• 13/16 inch bore diameter with 0.042 inch ring thickness for precise groove fit
• Groove width of 0.046 inches with a tolerance of 0.000 to 0.003 inches for accurate seating
• Free outside diameter of 0.901 inches allows controlled installation into bore groove
• Package quantity of 20 supports shop stock and service inventory needs

Compatibility

Designed as an OEM-style replacement or service part for mechanical assemblies requiring an internal snap retaining ring with a 13/16 inch bore diameter and a groove width of 0.046 inches.

Installation Notes

Internal snap rings are installed by machinists or mechanical technicians using snap ring pliers rated for internal rings of this diameter. Always de-energize and lock out equipment before servicing any assembly containing retaining rings. Confirm groove dimensions match ring specifications before installation to prevent ring failure under load. Do not reuse rings that have been overexpanded or show signs of deformation.
