Value Collection 80122187 Internal Snap Retaining Ring 50pk

Product Description

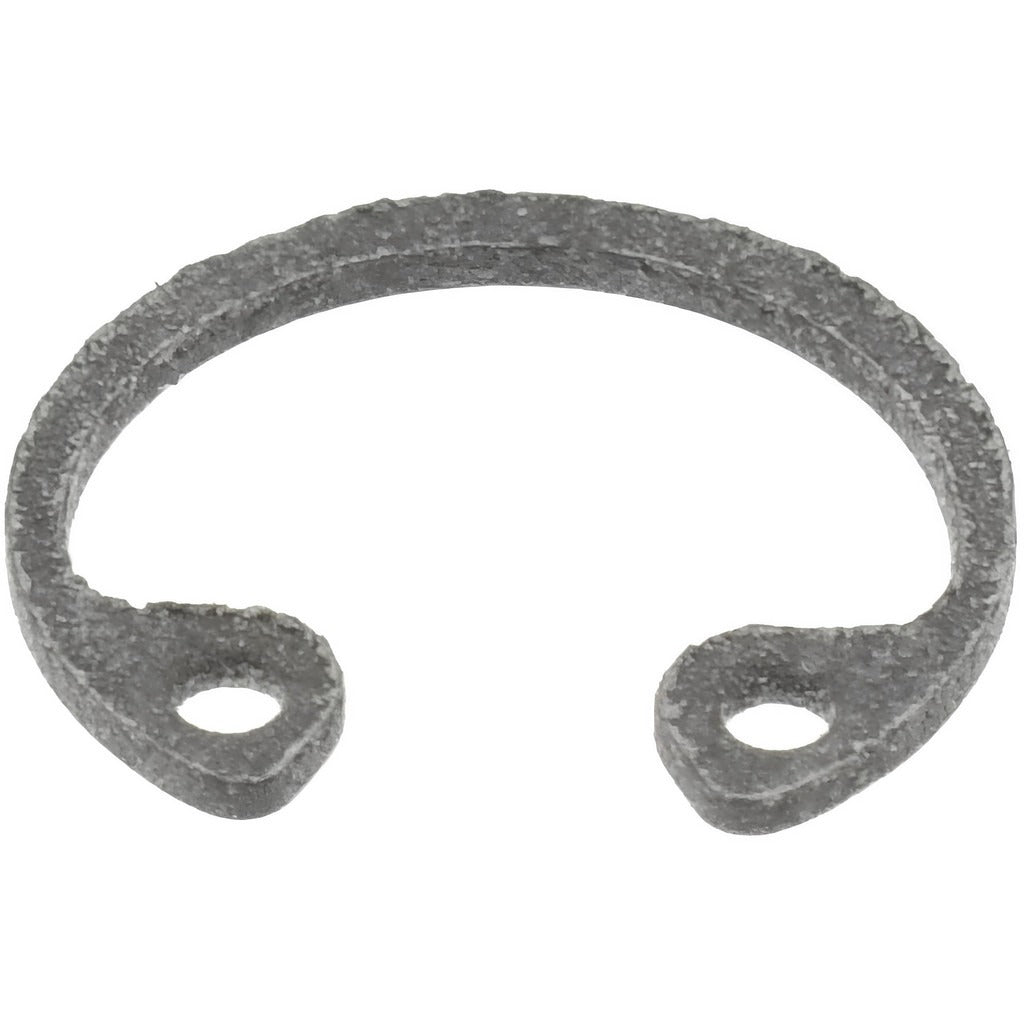

The VALUE COLLECTION 80122187 is a spring steel internal snap retaining ring designed to secure components within a bored housing or assembly. With a 1/4 inch nominal bore diameter and a free outer diameter of 0.28 inches, this ring seats into a machined internal groove to prevent axial movement of shafts, pins, or other retained parts. Ring thickness is 0.015 inches. The phosphate finish provides baseline corrosion resistance for general industrial and mechanical service. This part is used by millwrights, maintenance technicians, and assembly professionals working on precision mechanical assemblies where compact retention hardware is required.

Internal snap retaining rings of this size are common in light-duty mechanical assemblies including small motors, gearboxes, pumps, valves, and instrumentation housings. The 1/4 inch bore size suits miniature or compact component retention where space is restricted. The groove accepts a width of 0.02 inches with a depth of 0.009 inches. This package contains 50 rings, making it suitable for production assembly, maintenance stocking, or service kit use across multiple units.

Key Features

• Spring steel construction provides reliable snap retention and consistent ring spring-back after installation
• Phosphate finish for baseline corrosion resistance in general service environments
• 1/4 inch nominal bore diameter with 0.28 inch free outer diameter for compact housings
• Groove width of 0.02 inches and groove depth of 0.009 inches for precise groove fitment
• Ring thickness of 0.015 inches with tight tolerance of -0.002 to 0.002 inches
• Packaged in quantities of 50 to support production or maintenance stocking needs

Compatibility

Designed for use in internal grooves with a 1/4 inch bore diameter and a groove width of 0.02 inches, suitable for light mechanical assemblies requiring internal axial retention hardware.

Installation Notes

Internal snap rings of this size require internal snap ring pliers sized for the bore diameter; using incorrect tooling risks ring deformation or improper seating. Power down and de-energize any equipment before disassembling housings or bearing bores. Verify groove dimensions match the ring specifications before installation to ensure proper retention. Follow applicable machinery safety standards and equipment manufacturer procedures when servicing assemblies containing retaining rings.
