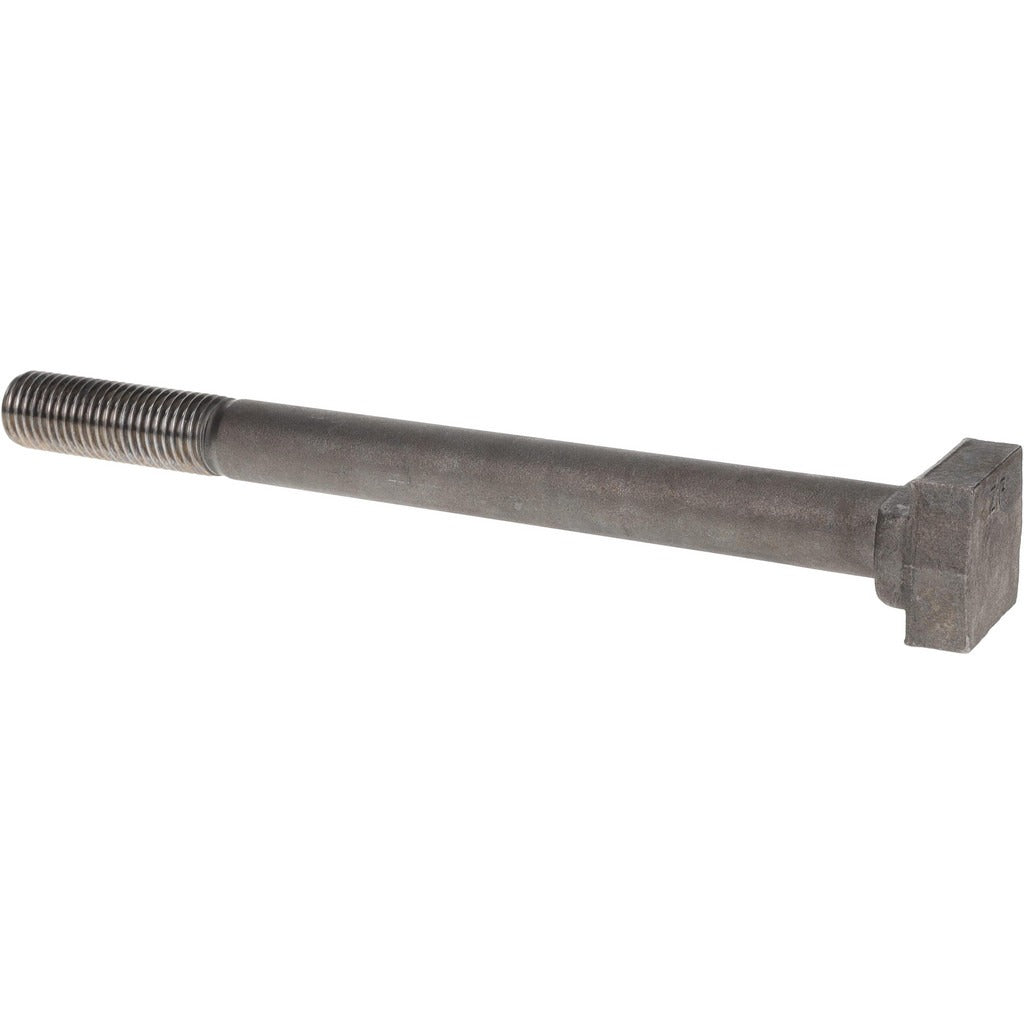

Value Collection 80029 T-slot Bolt 1-8 Unc Steel Uncoated

Product Description

The VALUE COLLECTION 80029 is a heavy-duty steel T-slot bolt designed for securing workpieces and fixtures to T-slotted machine tables, jigs, and fixturing systems. The bolt features a 1-8 UNC thread with a 3-inch thread length and a 1-inch slot width, allowing it to seat firmly in standard 1-inch T-slots. Machined from Grade C-1045 steel to a Class 3 thread fit, this fastener delivers the dimensional accuracy and load-bearing strength required in precision machining and industrial fixture applications. The uncoated finish suits environments where surface treatment will be applied by the end user or where bare steel is acceptable.

This T-slot bolt is suited for use on milling machines, drill press tables, surface grinders, and fabrication fixture plates that use standard 1-inch T-slots. It is installed by machinists, tool and die makers, and maintenance professionals setting up workholding arrangements in manufacturing and metalworking environments. The 12-inch length under head accommodates stacked fixture components or tall workpiece setups that require extended reach below the table surface.

Key Features

• 1-8 UNC thread form to Class 3 fit for precise engagement with standard nuts and fixture hardware
• 3-inch thread length provides adequate engagement depth for heavy clamping loads
• 1-inch slot width fits standard T-slot machine tables and fixture plates
• 12-inch length under head accommodates tall or stacked fixture assemblies
• Grade C-1045 steel construction for strength and machinability in industrial applications
• Uncoated finish allows for user-applied surface treatment or use as-is in dry environments

Compatibility

Designed for use in standard 1-inch T-slot machine tables, milling fixtures, drill press tables, and fabrication plates that accept T-slot fasteners with a 1-inch slot width.

Installation Notes

T-slot bolts are installed by machinists and fixture technicians working with machine tool setups. Always power down and lock out the machine before adjusting or installing workholding hardware on the table. Slide the T-slot bolt into the open end of the T-slot or drop it into an intermediate access point, then align and tighten with the appropriate nut and clamp hardware. Verify that the bolt head seats fully within the slot and does not protrude above the table surface before operation.
