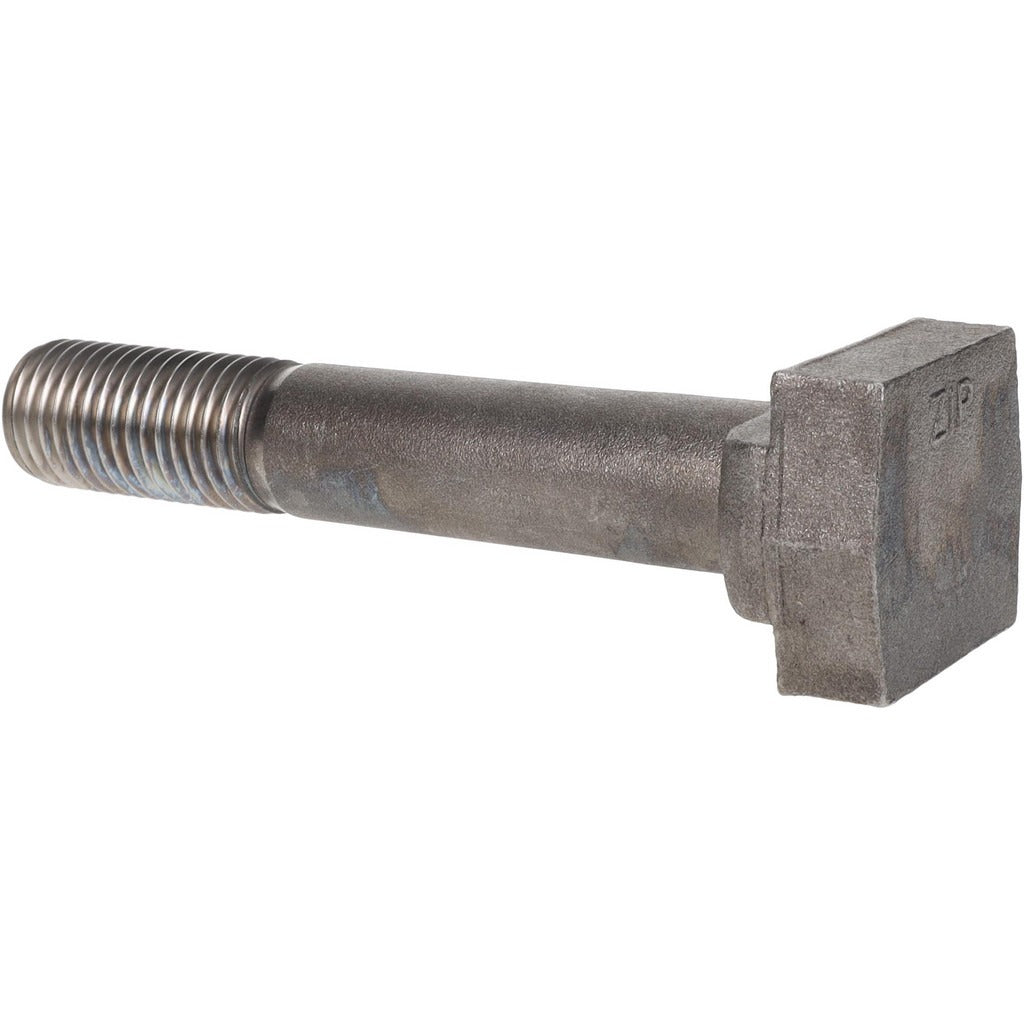

Value Collection 80024 T-slot Bolt 1-8 Unc Steel Uncoated

Product Description

The VALUE COLLECTION 80024 is a steel T-slot bolt designed for securing workpieces and fixtures to T-slotted machine tables, jigs, and fixture plates. The bolt features a 1-8 UNC thread with a 2 inch thread length and a head sized to fit a 1 inch wide T-slot. Machined from C-1045 steel to Material Grade 5, this bolt delivers the shear and tensile strength required in metalworking, machining, and fixturing applications. The uncoated finish keeps tolerances consistent and makes the bolt ready for immediate use or coating as the job demands. Thread engagement follows Class 3 fit standards for precise, reliable hold in threaded clamping hardware.

This T-slot bolt is used in machine shop and industrial fixturing environments where workpieces must be clamped securely to slotted tables on milling machines, drill presses, surface grinders, and similar equipment. The 6 inch length under head accommodates deep T-slots and stacked fixture components. Machinists, toolmakers, and fixture builders typically specify this bolt when assembling modular fixturing systems or setting up production runs that require repeatable clamping positions. Sold individually, it can be ordered as a single replacement or in quantity as needed.

Key Features

• 1-8 UNC thread with Class 3 fit for precise engagement with standard clamping nuts and studs
• 1 inch slot width fits standard machine table T-slots
• 6 inch length under head accommodates deep T-slot tables and stacked fixture plates
• C-1045 steel at Material Grade 5 provides high tensile and shear strength
• Uncoated finish maintains tight dimensional tolerances out of the box
• 1-3/4 inch head width and 5/8 inch head height sized for standard T-slot clamping clearance

Compatibility

Designed for use in standard 1 inch wide T-slots on machine tables, fixture plates, and slotted tooling surfaces that accept 1-8 UNC T-slot hardware.

Installation Notes

T-slot bolts are installed by machinists and toolmakers during workholding setup. Always de-energize and lock out the machine before adjusting or repositioning clamping hardware on the table. Torque clamping nuts evenly and in sequence to distribute clamping force without distorting the workpiece. Inspect the T-slot channel for chips or debris before seating the bolt head to ensure full contact and prevent damage to the slot.
