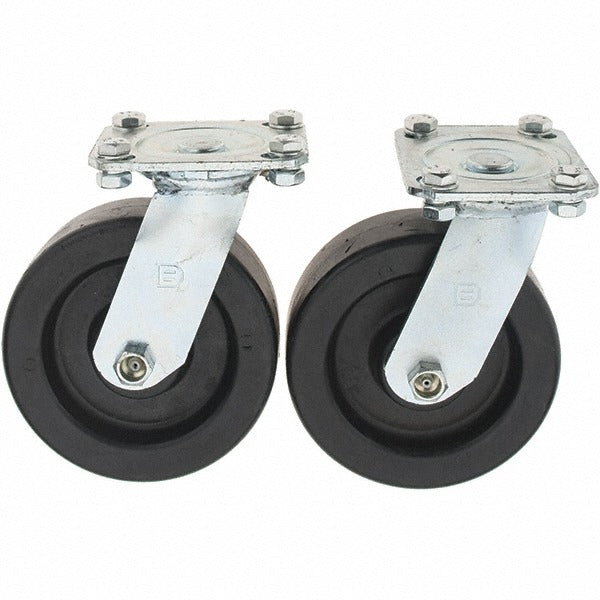

Value Collection 8-681201 Swivel Top Plate Caster 1000 Lb

Product Description

The VALUE COLLECTION 8-681201 is a swivel top plate caster designed for heavy-duty material handling and industrial cart applications. The caster features a 6-inch diameter black polypropylene wheel with a 2-inch tread width, mounted on a galvanized top plate measuring 3-7/8 inches by 4-1/2 inches. A sleeve bearing supports smooth rolling under load, and the side brake provides positive locking when the caster is stationary. Rated at 1,000 lb capacity, this unit suits demanding floor-level transport needs in warehouses, manufacturing floors, and maintenance shops. Sold in a package quantity of 2.

This caster is suited for use on carts, racks, workbenches, and mobile equipment where a rigid side-brake swivel caster is required. The polypropylene wheel performs well on smooth concrete and sealed warehouse floors. The galvanized finish on the plate and fork hardware adds corrosion resistance in light-moisture environments. The 7-39/64-inch overall height keeps platforms at a consistent working elevation when used across a matched set of casters.

Key Features

• 1,000 lb rated load capacity per caster
• 6-inch diameter black polypropylene wheel with 2-inch tread width
• Side brake for positive stationary locking
• Galvanized finish on plate and fork hardware for corrosion resistance
• Sleeve bearing construction for reliable rolling performance
• Top plate mount measures 3-7/8 inches by 4-1/2 inches for broad equipment compatibility

Compatibility

Designed as an OEM-style replacement or direct-fit swivel top plate caster for carts, racks, and mobile industrial equipment requiring a 6-inch polypropylene wheel with a standard top plate mount.

Installation Notes

Installation is performed by bolting the top plate directly to the equipment frame using hardware matched to the plate hole pattern. Power down or secure any equipment before replacing casters to prevent unintended movement. Verify that the combined caster load rating equals or exceeds the total loaded weight of the equipment before returning it to service. Consult applicable OSHA material handling guidelines when specifying casters for powered industrial equipment.
