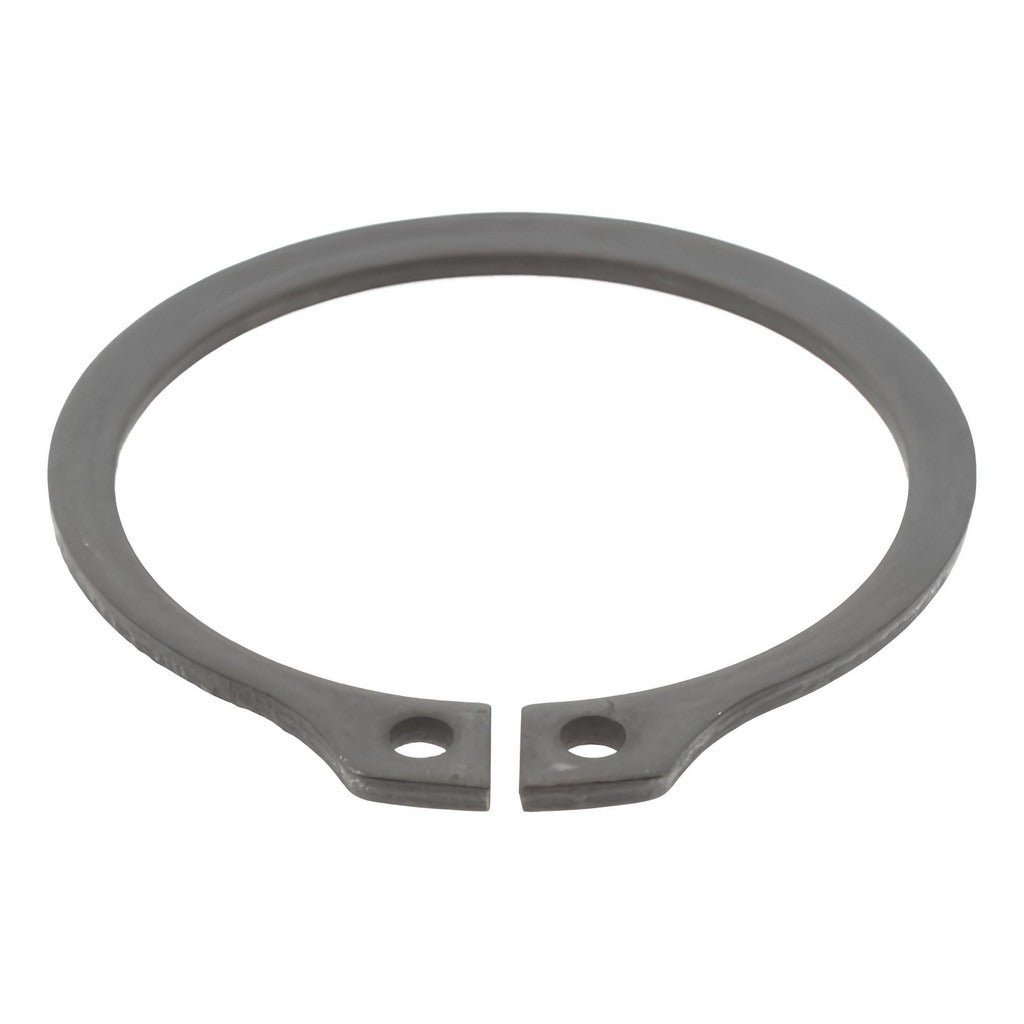

Value Collection 75942110 External Snap Retaining Ring

Product Description

The VALUE COLLECTION 75942110 is an external snap retaining ring designed to secure components onto shafts in mechanical assemblies. Manufactured from spring steel with a phosphate finish, this ring seats into a precision-cut external groove on a 1-3/16 inch shaft. The groove diameter measures 1.118 inches and the free diameter is 1.098 inches, allowing the ring to compress for installation and spring outward to lock firmly in the groove. Ring thickness is 0.05 inches and groove width is 0.056 inches. Machinists, maintenance technicians, and assembly professionals use this ring in industrial and mechanical service applications where reliable axial retention is required.

This external snap ring is suited for use in shaft-and-housing assemblies across industrial machinery, drivetrain components, hydraulic equipment, and general mechanical systems. It is appropriate for both original equipment assembly and field replacement work wherever a 1-3/16 inch shaft with a standard external groove is present. The phosphate finish provides a base level of corrosion resistance suitable for typical shop and mechanical service environments.

Key Features

• External snap ring design for axial retention on 1-3/16 inch diameter shafts
• Spring steel construction for reliable snap-fit retention and repeated deflection resistance
• Phosphate finish provides mild corrosion resistance and surface hardness
• Groove diameter of 1.118 inches with groove width of 0.056 inches for precise fitment
• Ring thickness of 0.05 inches with tight thickness tolerance of plus or minus 0.002 inches
• Inch measurement system; compatible with standard external snap ring pliers

Compatibility

Designed as an OEM-style replacement or service part for mechanical assemblies using a 1-3/16 inch nominal shaft diameter with a standard external snap ring groove measuring 1.118 inches groove diameter and 0.056 inches groove width.

Installation Notes

Installation requires external snap ring pliers sized for the ring free diameter. Ensure the shaft groove is clean and free of burrs before seating the ring. Always wear eye protection during installation and removal, as snap rings can release under spring tension. Verify groove width and shaft diameter match the ring specifications before installation to prevent improper seating or ring failure.
