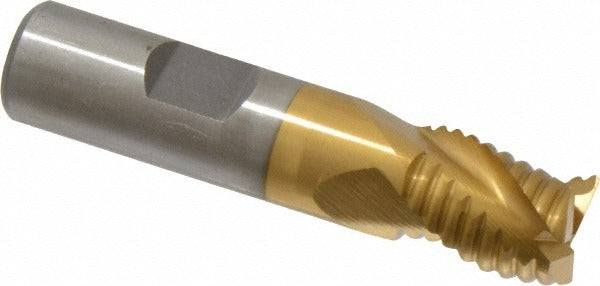

Value Collection 724-6475 Roughing End Mill 5/8 in Cobalt

Product Description

The VALUE COLLECTION 724-6475 is a single-end roughing end mill designed for aggressive material removal in milling operations. Built from M42 cobalt high-speed steel, it delivers heat and wear resistance suited for tough ferrous and non-ferrous materials. The 5/8-inch diameter cutter features 3 flutes with a right-hand cutting direction and right-hand flute spiral in a high-helix configuration. A TiN (titanium nitride) coating adds surface hardness and reduces friction at the cutting edge. The 3/4-inch length of cut and 2-7/8-inch overall length make this a compact, rigid tool for shorter-reach roughing passes on CNC mills and manual knee mills.

This end mill is suited for roughing operations in job shop, toolroom, and production machining environments. The high-helix, 3-flute geometry promotes efficient chip evacuation during slotting, peripheral milling, and pocketing. Center-cutting capability allows direct plunge entry without a pre-drilled hole. The 5/8-inch straight shank fits standard ER collets, end mill holders, and Weldon-style set-screw holders commonly found in vertical machining centers and knee mills.

Key Features

• M42 cobalt HSS construction for elevated heat resistance and edge retention
• TiN coating reduces friction and extends tool life on ferrous materials
• 3-flute, high-helix design promotes fast chip evacuation during roughing cuts
• Center-cutting geometry allows direct plunge milling without pre-drilling
• Right-hand cut and right-hand spiral for use with standard spindle rotation
• Single-end configuration with 5/8-inch shank for secure tool holding

Compatibility

Designed as a direct-fit roughing end mill for use in standard 5/8-inch end mill holders, ER collet chucks, and Weldon-style holders on vertical CNC machining centers and manual knee mills.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Power down and lock out the spindle before inserting or removing the tool from any holder. Ensure the shank is fully seated to the required engagement depth in the holder before tightening. Inspect the cutting edges and coating for chips or wear before each use; a damaged edge should not be run at full feed rates.
