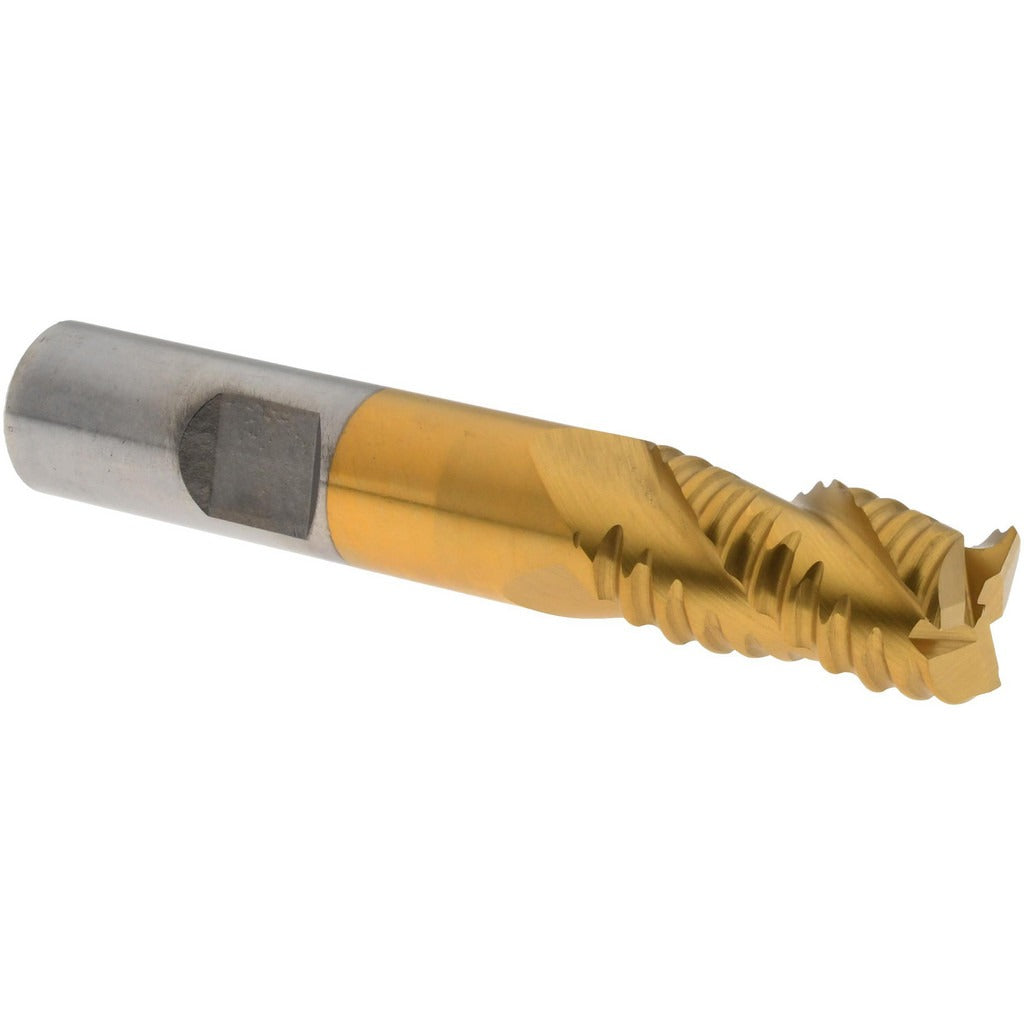

Value Collection 724-6454 Roughing End Mill 1/2 in 3 Flute Cobalt

Product Description

The VALUE COLLECTION 724-6454 is a single-end roughing end mill designed for aggressive material removal in milling operations. Built from M42 cobalt high-speed steel and finished with a TiN (titanium nitride) coating, it handles tough ferrous and non-ferrous materials where standard HSS tooling wears prematurely. The 1/2-inch diameter cutter features 3 flutes with a right-hand cutting direction, right-hand flute spiral, and a high helix style that promotes chip evacuation and reduces heat buildup at the cutting edge. Center-cutting geometry allows plunge entry as well as conventional side milling. Overall length is 3 inches with a 1-inch length of cut. Weight is 0.32 pounds.

This roughing end mill is suited for use in manual knee mills, CNC machining centers, and mill-drill setups where roughing passes are needed before a finish end mill is used. The 1/2-inch shank seats directly into standard ER, Weldon, or set-screw tool holders with a 1/2-inch bore. It is appropriate for job shops, maintenance shops, and production environments that need reliable material removal on steel, stainless, cast iron, and similar materials.

Key Features

• M42 cobalt construction for heat and wear resistance beyond standard M2 HSS
• TiN coating extends tool life and reduces friction at the cutting edge
• High helix flute style promotes chip evacuation and reduces cutting heat
• Center-cutting design allows direct plunge milling without pre-drilling
• Right-hand cut and right-hand spiral for use in standard spindle-forward operation
• Single-end configuration with 1-inch length of cut and 3-inch overall length

Compatibility

Designed as a general-purpose roughing end mill for use in any machine tool accepting a 1/2-inch shank, including manual and CNC milling machines with compatible ER collets, Weldon-style holders, or set-screw tool holders.

Installation Notes

Installation should be performed by a machinist or qualified tooling technician. Power down and lock out the spindle before changing tooling. Seat the shank fully to the minimum depth recommended by the tool holder manufacturer and torque the retention mechanism per the holder specification. Confirm runout with a dial indicator before taking the first cut, as excessive runout accelerates wear and reduces surface finish quality.
