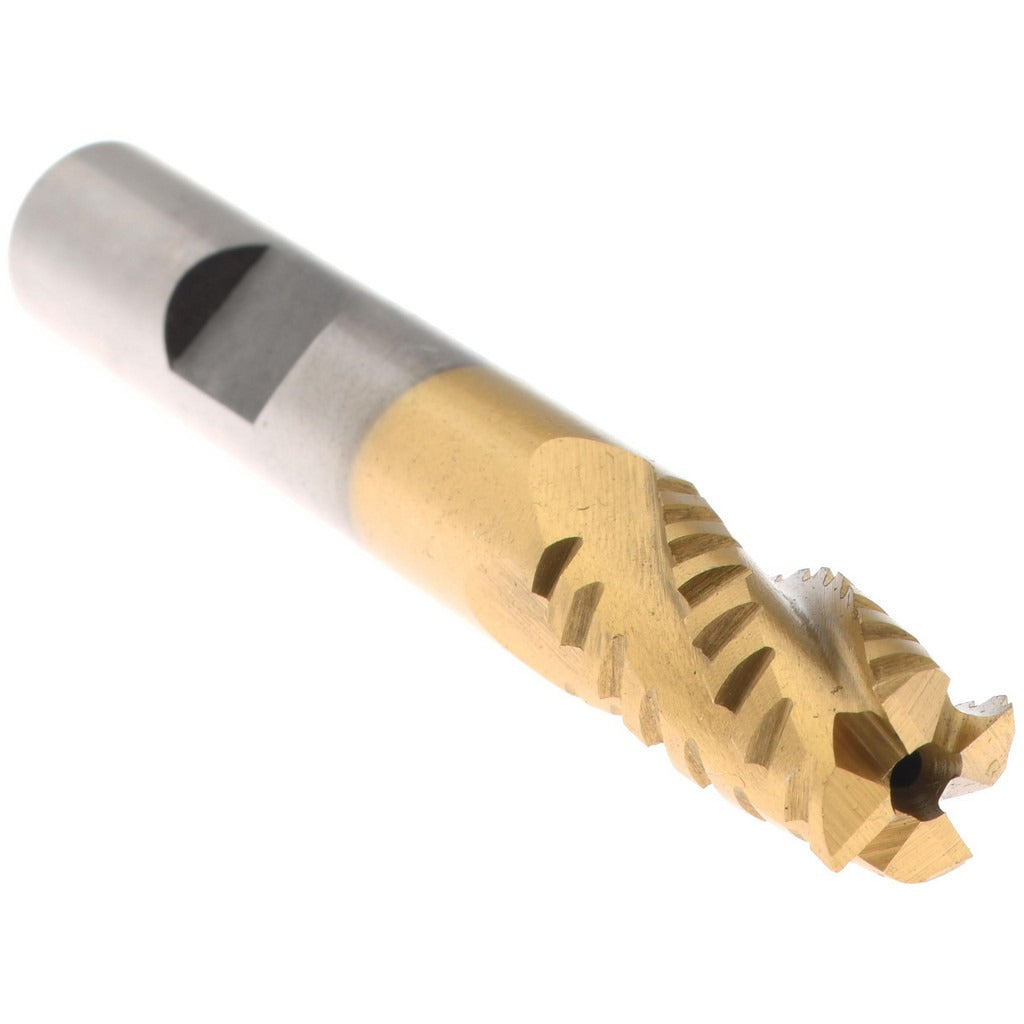

Value Collection 724-5077 End Mill 3/8in 4 Flute Cobalt Tin

Product Description

The VALUE COLLECTION 724-5077 is a single-end roughing finishing end mill designed for material removal and surface finishing in one tool. Built from M42 cobalt high-speed steel and coated with Titanium Nitride (TiN), it delivers extended wear resistance and heat tolerance compared to standard HSS tooling. The 3/8-inch diameter, 4-flute, square-end geometry with a 30-degree helix angle makes it suited for slotting, profiling, and peripheral milling operations. It is installed and operated by machinists and tool-and-die professionals working on manual or CNC milling machines.

This end mill is used in job shop, production, and maintenance machining environments where both roughing and finishing passes are required without a tool change. The 3/4-inch length of cut (LOC) and 2-1/2-inch overall length (OAL) fit standard milling applications in ferrous and non-ferrous materials. The Weldon flat shank provides positive retention in set-screw style end mill holders, reducing pullout risk during aggressive cuts. Right-hand cut and right-hand flute direction are standard for conventional milling setups.

Key Features

• M42 cobalt HSS construction for elevated heat and wear resistance
• TiN coating extends tool life and reduces friction at the cutting edge
• 4-flute square end geometry supports both roughing and finishing in a single pass
• 30-degree helix angle improves chip evacuation and cutting efficiency
• Weldon flat shank ensures positive set-screw retention in the holder
• Right-hand cut, right-hand flute direction for standard milling compatibility

Compatibility

Designed for use in standard 3/8-inch end mill holders with Weldon flat (set-screw) retention, compatible with manual knee mills and CNC vertical machining centers accepting straight shank tooling.

Installation Notes

This end mill is installed by qualified machinists following standard toolroom practices. Power down and lock out the spindle before seating or removing tooling. Torque the set screw against the Weldon flat to manufacturer specifications for your specific holder. Inspect the shank and holder bore for chips or damage before each installation to prevent runout.
