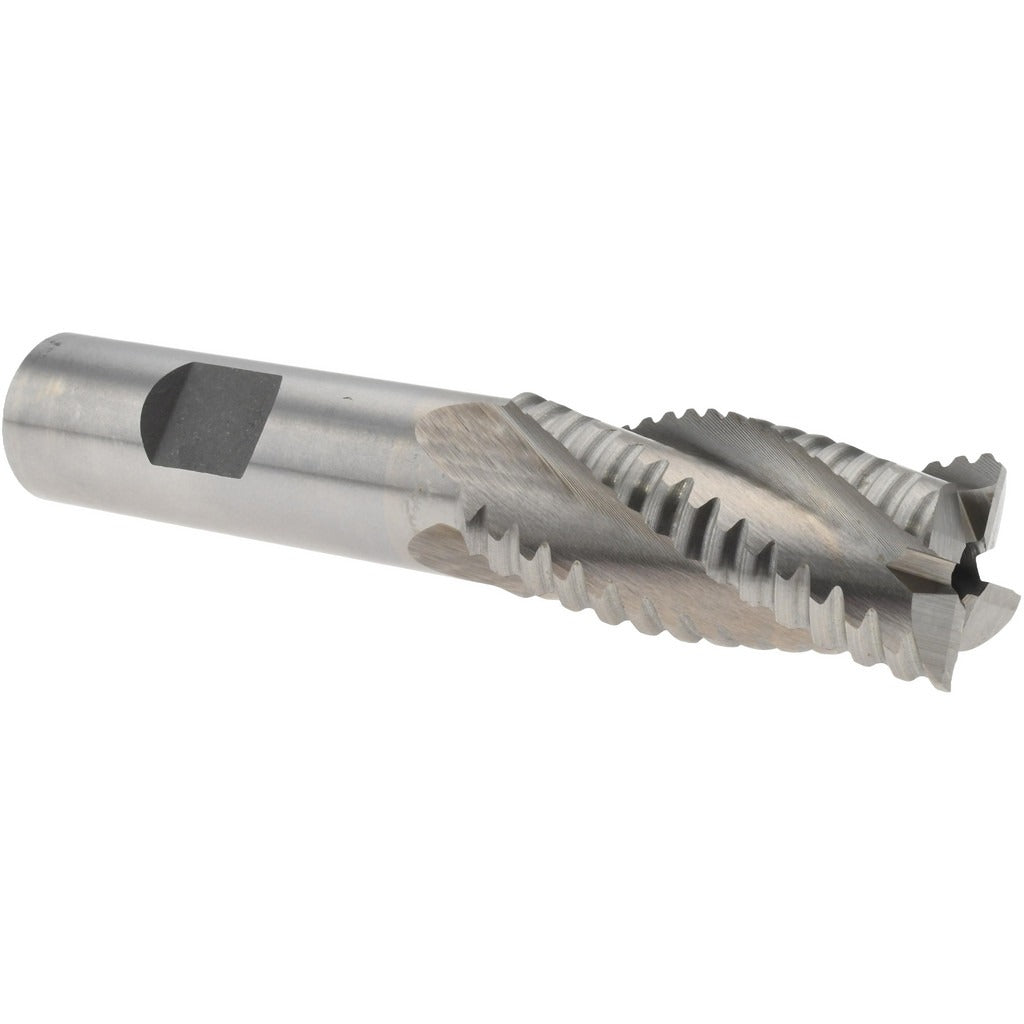

Value Collection 724-4167 Roughing Finishing End Mill

Product Description

The VALUE COLLECTION 724-4167 is a cobalt roughing finishing end mill designed for material removal and finishing passes in a single tool. Built from M42 cobalt high-speed steel, it handles tough ferrous materials where standard HSS tools wear prematurely. The 3/4 inch diameter, 4-flute, square-end geometry delivers aggressive chip clearing on roughs while leaving a clean finish wall. A 30-degree helix angle promotes smooth cutting action and efficient chip evacuation. With a 1.625 inch length of cut and 3.75 inch overall length, this end mill suits general-purpose milling on knee mills, CNC machining centers, and manual mills alike. Installed by machinists and toolroom operators in production and job-shop environments.

This end mill is suited for side milling, slotting, and profiling operations on ferrous metals including alloy steels and stainless. The Weldon flat shank with a 5/8 inch shank diameter provides a positive drive connection in side-lock tool holders, reducing tool pull-out risk under heavy cuts. The bright, uncoated finish makes it straightforward to resharpen. It is not a centercutting tool and should not be plunged directly into solid material. Single-end configuration means full tool replacement when the cutting end is worn.

Key Features

• M42 cobalt HSS construction for extended tool life on ferrous and difficult-to-machine alloys
• 4-flute square end geometry supports both roughing and finishing in one tool
• 30-degree helix angle promotes smooth cutting and efficient chip evacuation
• Weldon flat shank provides positive drive in side-lock holders, resisting pull-out
• Bright/uncoated finish allows straightforward regrinding to extend tool life
• Right-hand cut and right-hand flute direction for standard spindle use

Compatibility

Designed for use in standard 5/8 inch side-lock or Weldon flat end mill holders on manual knee mills, CNC vertical machining centers, and similar milling machines. Not centercutting — not suitable for direct plunge milling.

Installation Notes

Installation should be performed by a qualified machinist or toolroom operator. Ensure the machine spindle is fully stopped and locked out before changing tooling. Seat the Weldon flat against the set screw in the holder to prevent axial pull-out under load. Verify tool runout with a dial indicator after clamping before beginning a cut.
