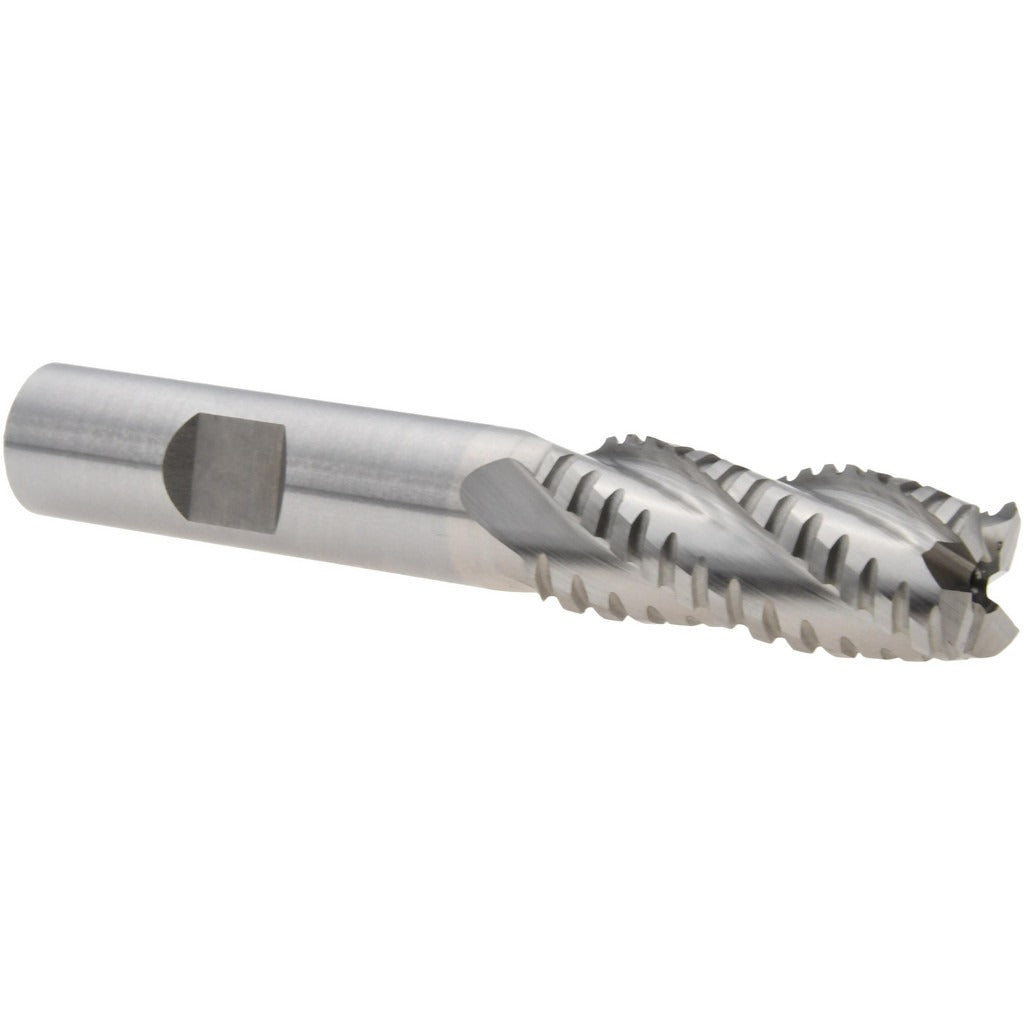

Value Collection 724-4131 Roughing Finishing End Mill

Product Description

The VALUE COLLECTION 724-4131 is a cobalt roughing finishing end mill designed for aggressive material removal and semi-finish passes in a single tool. Built from M42 cobalt high-speed steel, it handles interrupted cuts and harder workpiece materials that would wear down standard HSS tooling faster. The 9/16 inch diameter cutting head features 4 flutes with a 30-degree helix angle and a square end profile, delivering efficient chip evacuation and a smooth finish on exit passes. The bright, uncoated surface finish is well-suited for general-purpose machining where coating is not required. This is a single-end tool with a Weldon flat shank for positive rotational drive in the spindle.

This end mill is used in vertical and horizontal milling applications across job shops, toolrooms, and production environments. The 1/2 inch Weldon flat shank seats securely in side-lock holders, making it a reliable choice for face milling, slotting, and profiling operations on ferrous and non-ferrous materials. Right-hand cutting direction and right-hand flute direction are standard for conventional milling setups.

Key Features

• M42 cobalt construction for improved hardness and heat resistance over standard M2 HSS
• 4-flute, 30-degree helix square end geometry for roughing and finishing in one pass
• Weldon flat shank for positive engagement in side-lock tool holders
• Bright, uncoated finish suitable for general-purpose milling applications
• Right-hand cut and right-hand flute direction for conventional spindle setups
• Single-end design for straightforward indexing and replacement

Compatibility

Designed for use with standard side-lock Weldon flat end mill holders accepting a 1/2 inch shank diameter. Suitable for vertical and horizontal milling machines running right-hand spindle rotation.

Installation Notes

End mills must be installed by qualified machinists or tool-and-die technicians following standard machine shop safety procedures. Power down and lock out the spindle before changing tooling. Ensure the Weldon flat is properly aligned with the set screw in the holder to prevent slippage under cutting loads. Do not use this end mill in applications requiring center-cutting entry, as this tool is not centercutting.
