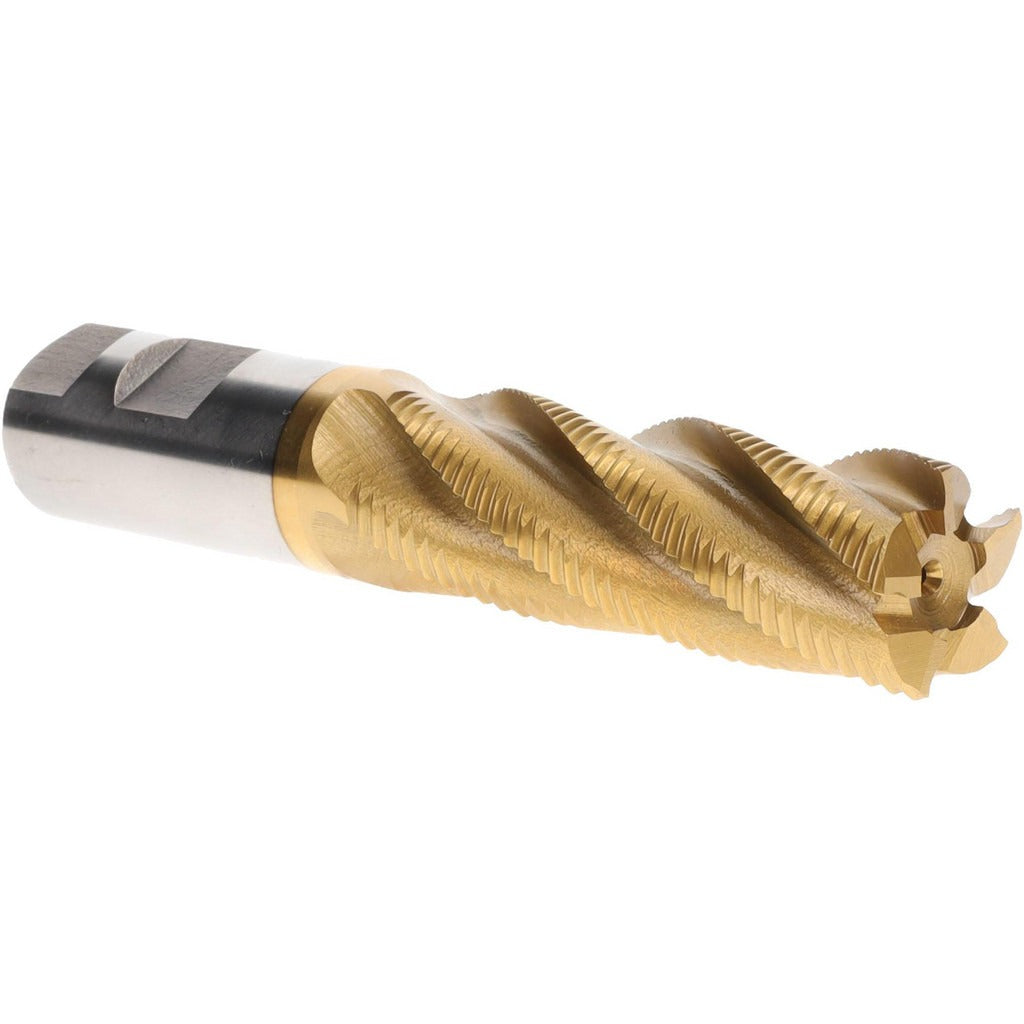

Value Collection 724-3266 Roughing End Mill 1 in 5 Flute Cobalt

Product Description

The VALUE COLLECTION 724-3266 is a single-end roughing end mill designed for aggressive material removal in milling operations. Built from M42 cobalt high-speed steel with a TiN coating, it delivers heat resistance and edge retention when cutting ferrous metals, stainless steels, and other tough workpiece materials. The 5-flute geometry increases chip load per tooth and reduces chatter compared to standard 2- or 4-flute designs. With a 1-inch cutting diameter, 3-inch length of cut, and 5.5-inch overall length, this tool suits production shops and job shops running manual or CNC vertical mills.

This roughing end mill is suited for roughing passes in ferrous and non-ferrous metals where stock removal rate is the priority over surface finish. Typical applications include peripheral milling, slotting at reduced depth, and step milling on knee mills, vertical machining centers, and horizontal mills. The right-hand cutting direction and right-hand flute spiral are standard for conventional and climb milling setups. It is not center-cutting, so plunge operations require a pre-drilled pilot or a separate center-cutting tool.

Key Features

• M42 cobalt HSS construction provides superior heat and wear resistance over standard M2 HSS
• TiN coating reduces friction and extends tool life on ferrous workpieces
• 5-flute design increases material removal rate and reduces vibration during roughing passes
• Right-hand cut and right-hand flute spiral for standard spindle rotation
• 1-inch shank diameter matches the 1-inch cutting diameter for maximum rigidity
• Non-center-cutting geometry optimized for peripheral and slot roughing, not plunging

Compatibility

Designed as a direct-fit roughing end mill for any R8, CAT, BT, or straight-collet toolholder accepting a 1-inch shank diameter on manual or CNC milling machines.

Installation Notes

Installation is performed by machinists or toolroom personnel. Ensure the spindle is fully stopped and the machine is in an e-stop or powered-down state before changing tooling. Seat the shank fully into the collet or toolholder and torque the retention mechanism per the toolholder manufacturer specification. Verify tool runout with a dial indicator before beginning a cut, as excessive runout accelerates edge wear on roughing tools.
