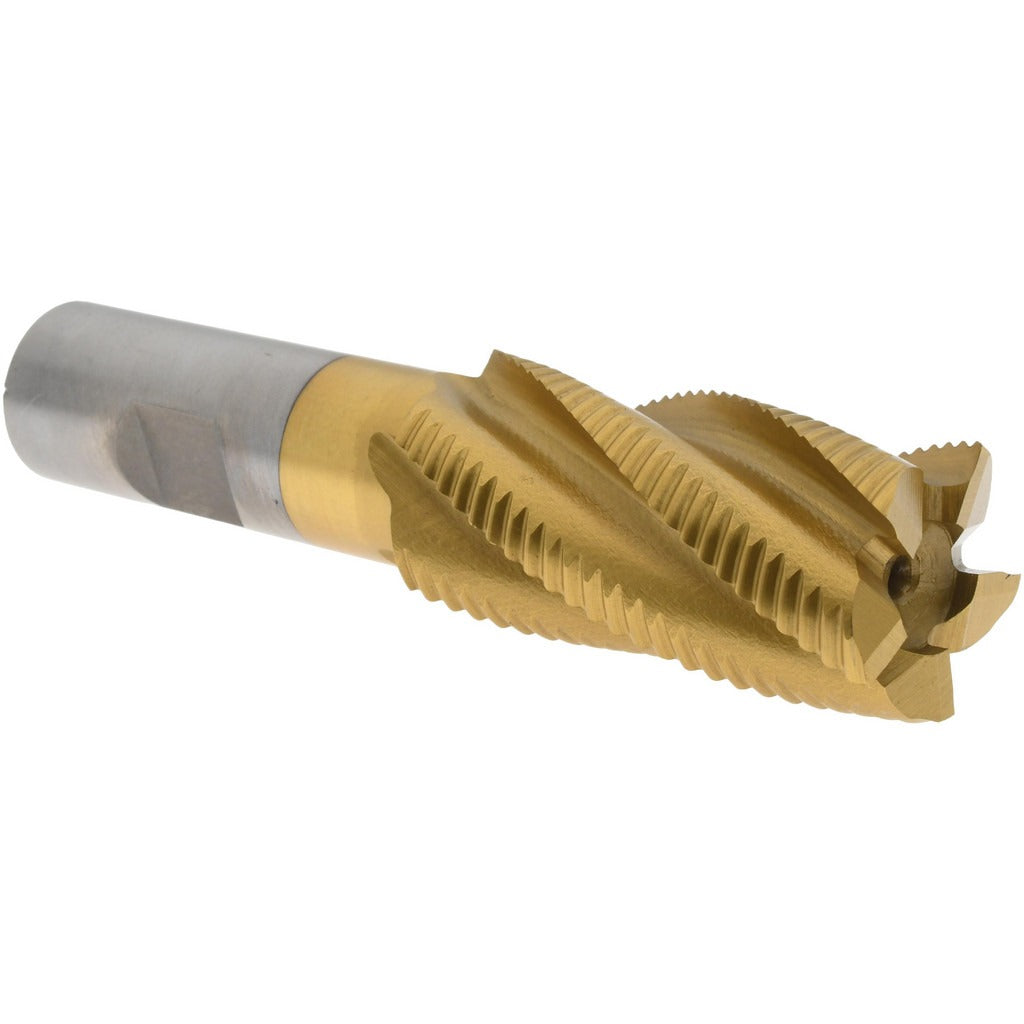

Value Collection 724-3239 Roughing End Mill 1 in 5 Flute Cobalt

Product Description

The VALUE COLLECTION 724-3239 is a single-end roughing end mill designed for aggressive material removal in milling operations. Machined from M42 cobalt high-speed steel, it delivers superior heat and wear resistance compared to standard M2 HSS tools. The 1-inch diameter cutter features 5 flutes with a right-hand cutting and right-hand flute direction, and carries a TiN (titanium nitride) coating to extend tool life and reduce friction at the cutting edge. With a 2-inch length of cut and a 3/4-inch shank diameter, this tool is suited for face milling, slotting, and roughing passes where stock removal rate is the priority.

This roughing end mill is intended for use in vertical and horizontal milling machines, CNC machining centers, and manual knee mills in job shop, production, and maintenance environments. It is a non-centercutting design, meaning it is not intended for plunge cutting into solid material. Machinists and tool-and-die professionals use this type of tool for roughing ferrous and non-ferrous metals before a finishing pass with a standard end mill.

Key Features

• M42 cobalt HSS construction for elevated heat resistance during heavy cuts
• TiN coating reduces tool wear and extends service intervals
• 5-flute geometry increases chip load capacity and improves surface finish during roughing
• Right-hand cut and right-hand helix for standard spindle compatibility
• 3/4-inch shank fits standard ER, side-lock, and Weldon-style tool holders
• Single-end configuration with 2-inch length of cut and 4-1/4-inch overall length

Compatibility

Designed as a direct-fit roughing end mill for milling machines and machining centers accepting a 3/4-inch shank. Confirm holder bore and drawbar torque specifications before installation.

Installation Notes

Installation and tool changes must be performed with the machine spindle fully stopped and the machine in a locked-out, tagged-out state per applicable safety procedures. Secure the 3/4-inch shank in a properly sized collet or end mill holder, torquing the retention mechanism to the tool holder manufacturer's specification. Do not use this non-centercutting end mill for plunge entry into solid material; use a ramp or helical entry path instead. Inspect the cutting edges and TiN coating for wear or chipping before each use.
