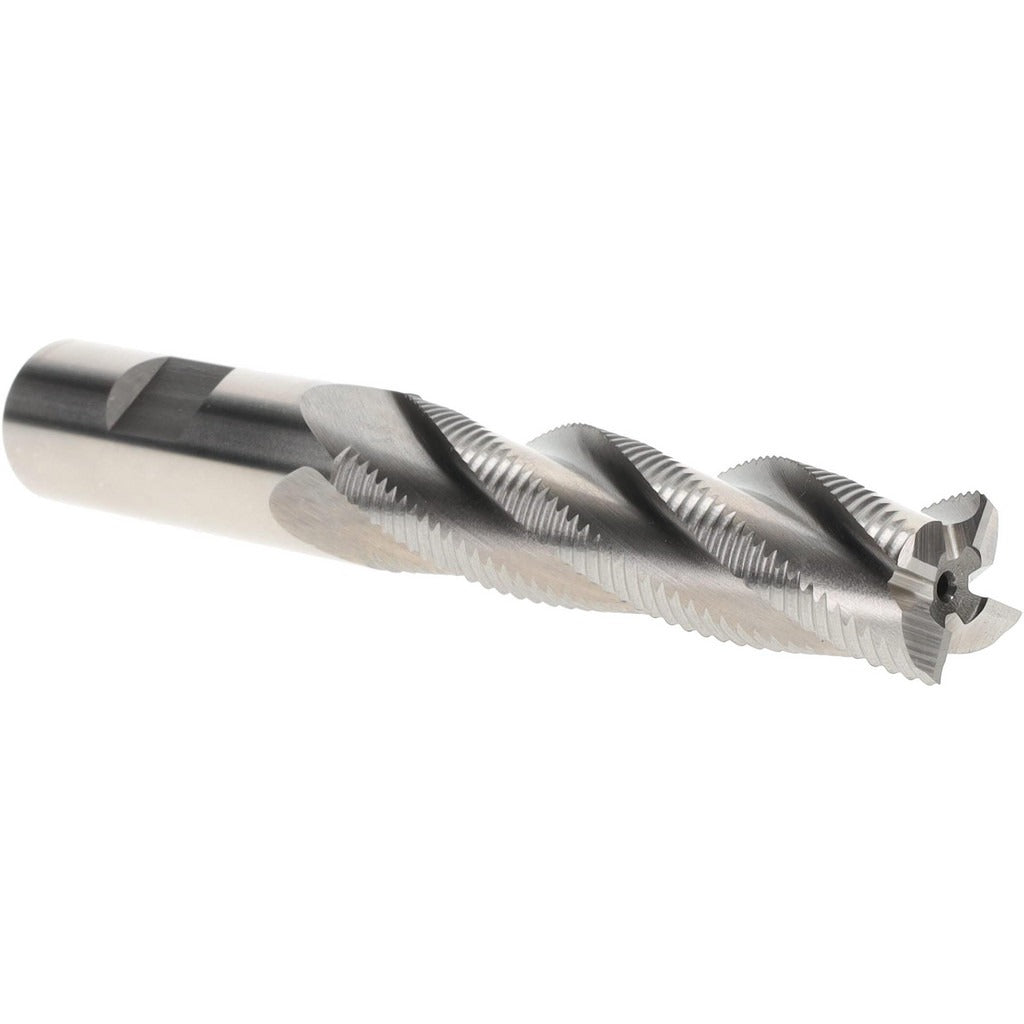

Value Collection 724-2194 Roughing End Mill 3/4 in Cobalt

Product Description

The VALUE COLLECTION 724-2194 is a single-end roughing end mill designed for aggressive material removal in milling applications. Built from M42 cobalt high-speed steel with a bright, uncoated finish, it delivers durability and heat resistance under high-load cutting conditions. The 3/4 inch diameter tool features 4 flutes and a 3 inch length of cut, making it well suited for hogging out material in one efficient pass. It is installed and operated by machinists and tooling professionals on vertical and horizontal milling machines and CNC machining centers.

This roughing end mill is intended for use in industrial and production machining environments where rapid stock removal is the priority. The right-hand cutting and right-hand flute direction are standard for most milling setups. The non-centercutting design means it is not suited for direct plunging; it should be used with a pre-drilled entry point or ramp-in strategy. Typical applications include roughing passes on steel, stainless steel, and other ferrous materials where M42 cobalt tooling performs well under heat and pressure.

Key Features

• M42 cobalt HSS construction for heat and wear resistance in ferrous machining
• 3/4 inch diameter with matching 3/4 inch shank for a consistent, rigid tool setup
• 3 inch length of cut provides reach for deeper pocket and slot roughing
• 4-flute geometry balances chip evacuation with cutting stability
• Right-hand cut, right-hand flute — compatible with standard spindle direction
• Bright, uncoated finish; no additional coating to interfere with regrinding

Compatibility

Designed as an OEM-style roughing end mill for use in standard 3/4 inch collet or end mill holders on vertical mills, knee mills, and CNC machining centers accepting 3/4 inch shank tooling.

Installation Notes

Installation should be performed by a qualified machinist. Secure the 3/4 inch shank fully in a matched collet, end mill holder, or Weldon-style holder before operation. Confirm spindle direction is right-hand before engaging the cut. This tool is not centercutting — do not plunge directly into solid material; use a pre-drilled hole or ramping entry to begin a pocket operation.
