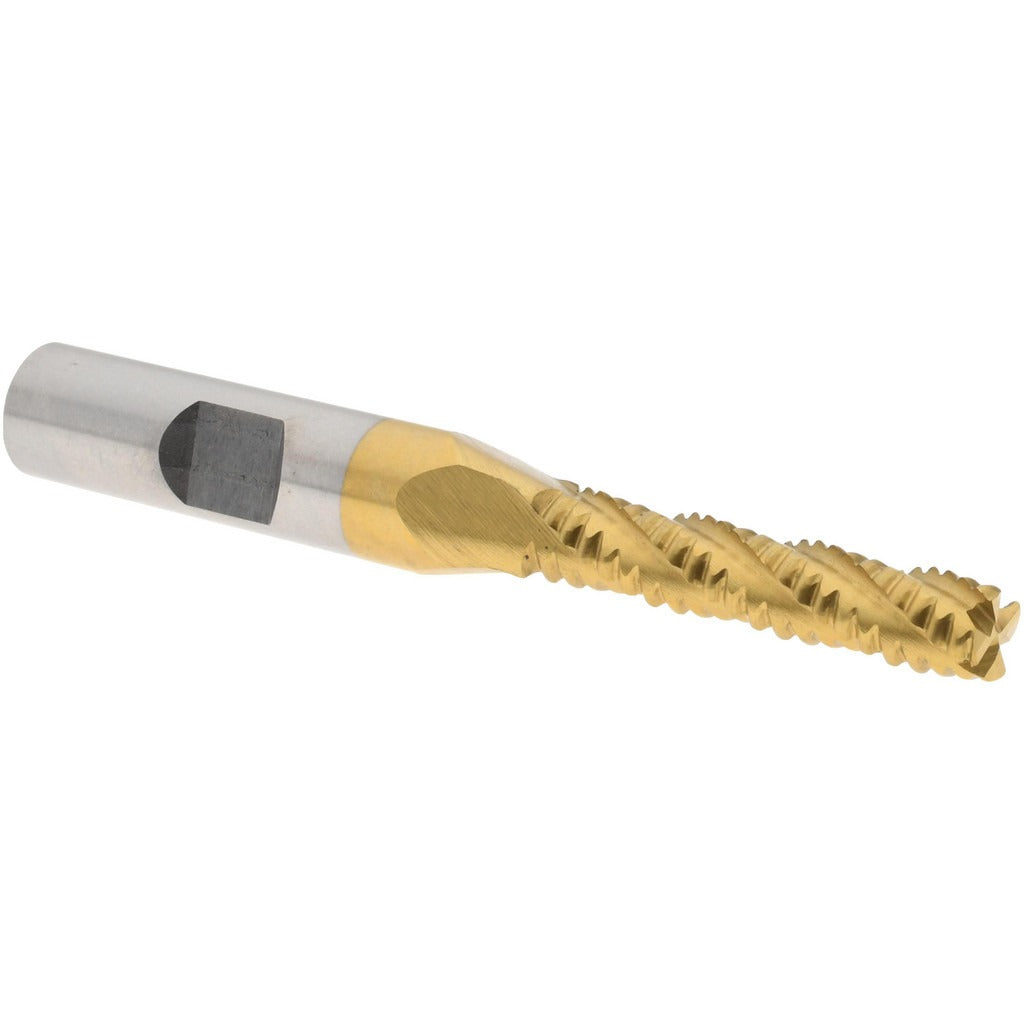

Value Collection 724-1026 Roughing End Mill 1/4 in Cobalt

Product Description

The VALUE COLLECTION 724-1026 is a single-end roughing end mill designed to remove material quickly in demanding milling operations. Built from M42 cobalt high-speed steel with a TiN coating, it delivers solid heat and wear resistance across a wide range of ferrous and non-ferrous materials. The cutter measures 0.25 inches in diameter with a 3/8-inch shank and a 7/8-inch length of cut. Three flutes with a right-hand cutting and right-hand flute direction produce an aggressive chip load while maintaining a stable cut. This tool is installed and operated by machinists and toolroom professionals using standard vertical or CNC milling equipment.

The 724-1026 is suited for roughing passes in general-purpose shop and production environments. Its center-cutting geometry allows plunge entry without a pre-drilled pilot hole, which adds flexibility in setups where ramp or plunge entry is required. The 2-11/16-inch overall length fits standard collets and tool holders for 3/8-inch shank tooling. This end mill is appropriate for use on steel, stainless, cast iron, and similar materials where a cobalt M42 grade is specified.

Key Features

• M42 cobalt construction for elevated red hardness and wear resistance
• TiN coating reduces friction and extends tool life in ferrous materials
• Center-cutting design permits plunge and ramp entry
• Right-hand cut and right-hand helix for standard milling spindle direction
• 3/8-inch shank diameter fits common collet and end mill holder sizes
• Single-end configuration — regrindable from one end

Compatibility

Designed as a standard 3/8-inch shank single-end roughing end mill compatible with vertical mills, knee mills, and CNC machining centers that accept 3/8-inch collets or end mill holders.

Installation Notes

Installation and tool changes must be performed with the spindle fully stopped and the machine in a locked-out, de-energized state per applicable lockout/tagout procedures. Seat the 3/8-inch shank fully into a clean, undamaged collet or end mill holder and torque the retention mechanism to the toolholder manufacturer specification. Inspect the cutting edges for chips or damage before each use. Do not exceed the tool manufacturer recommended speeds and feeds for the workpiece material and depth of cut.
