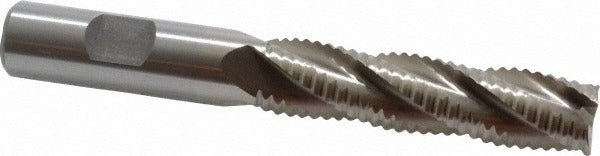

Value Collection 724-0155 Roughing End Mill 5/8 in 4 Flute Cobalt

Product Description

The VALUE COLLECTION 724-0155 is a single-end roughing end mill designed for aggressive material removal in milling operations. Built from M42 cobalt high-speed steel with a bright, uncoated finish, it delivers solid wear resistance and heat tolerance across a range of ferrous and non-ferrous workpiece materials. The cutter measures 0.625 inches in diameter with a 2.5-inch length of cut and a 4-5/8-inch overall length, giving machinists the reach needed for deeper pocketing and slotting work. Four right-hand flutes with a right-hand cutting direction provide efficient chip evacuation. The centercutting geometry allows plunge entry without a pre-drilled pilot hole. Licensed machinists and CNC operators are the primary installers.

This roughing end mill is suited for use on vertical machining centers, knee mills, and manual milling machines. Its cobalt M42 construction handles harder steels and stainless grades better than standard M2 HSS tooling. The 5/8-inch shank diameter fits standard ER collet chucks and end mill holders found on most production and job-shop equipment. Typical applications include roughing passes on steel plate, block machining, and profile milling where a finish pass will follow. The single-end configuration means the cutter is replaced rather than flipped when the cutting edge wears.

Key Features

• M42 cobalt HSS construction for improved heat and wear resistance over standard HSS
• Four right-hand flutes with right-hand cutting direction for efficient chip removal
• Centercutting geometry allows direct plunge entry into workpiece material
• Bright, uncoated finish compatible with a wide range of cutting fluids and lubricants
• 2.5-inch length of cut supports deep pocketing and slot milling applications
• 5/8-inch shank diameter fits standard ER collets and end mill holders

Compatibility

Designed as a direct-fit roughing end mill for any milling machine or machining center equipped with a 5/8-inch collet chuck or end mill holder accepting a straight shank tool.

Installation Notes

Installation is performed by a machinist or CNC operator. Power down and lock out the machine spindle before seating or removing the end mill from its holder. Ensure the shank is fully seated to the minimum engagement depth recommended for the holder type before tightening. Inspect the collet or holder for runout before beginning a roughing pass, as excess runout accelerates edge wear on cobalt tooling.
