Value Collection 723-8647 Square End Mill 9mm 4 Flute Cobalt

Product Description

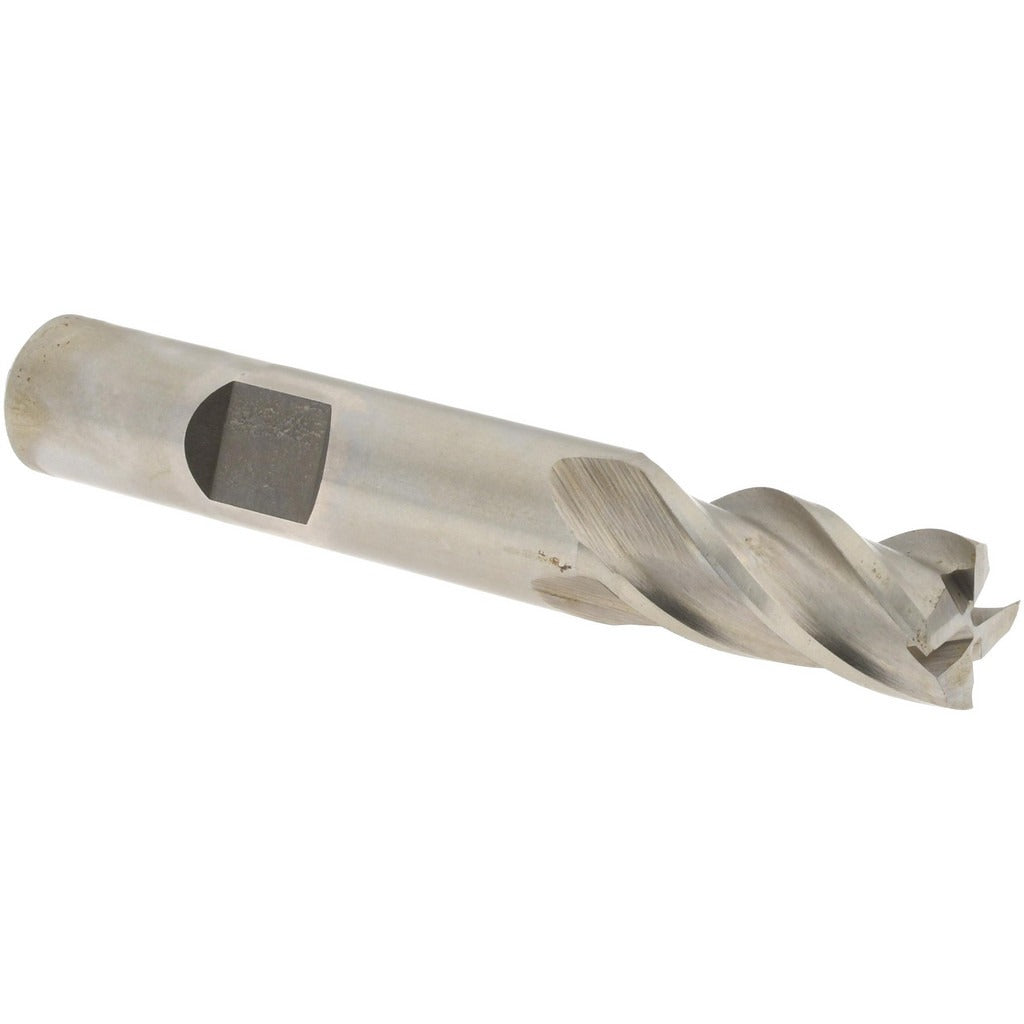

The VALUE COLLECTION 723-8647 is a cobalt square end mill designed for milling flat surfaces, slots, shoulders, and pockets on metal workpieces. Built from M42 cobalt high-speed steel, it delivers increased heat and wear resistance compared to standard HSS tooling, making it well-suited for harder ferrous materials and interrupted cuts. The 9 mm (0.3543 inch) cutting diameter pairs with a 3/4 inch length of cut and a 30-degree helix angle that promotes efficient chip evacuation and smooth cutting action. The bright, uncoated finish suits general-purpose machining where coating adhesion is not a requirement. This is a single-end tool sold individually.

This end mill is used in vertical machining centers, knee mills, and manual milling machines for general metalworking applications. The 4-flute geometry makes it appropriate for finishing passes and semi-finishing in steel, stainless, cast iron, and similar materials. The 3/8 inch shank diameter fits standard ER and straight-bore collet chucks common in both CNC and manual setups. Right-hand cutting and right-hand flute direction are standard for conventional and climb milling operations.

Key Features

• M42 cobalt HSS construction for improved heat resistance over standard M2 HSS
• 4-flute spiral design supports finishing and semi-finishing cuts
• 30-degree helix angle promotes chip flow and reduces cutting forces
• Center-cutting geometry allows plunge entry into the workpiece
• Bright/uncoated finish for general-purpose ferrous and non-ferrous milling
• Single-end configuration with regular length for standard reach applications

Compatibility

Designed as an OEM-style replacement and general-use end mill compatible with standard 3/8 inch collet chucks and straight-bore tool holders used in CNC and manual milling machines.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. Ensure the machine spindle is fully stopped and locked out before inserting or removing the tool from the collet or chuck. Verify collet size matches the 3/8 inch shank diameter before tightening to prevent runout or tool pullout. Inspect the tool shank and collet bore for chips or debris before seating the tool.
