Value Collection 723-6796 Roughing End Mill 1 in Cobalt

Product Description

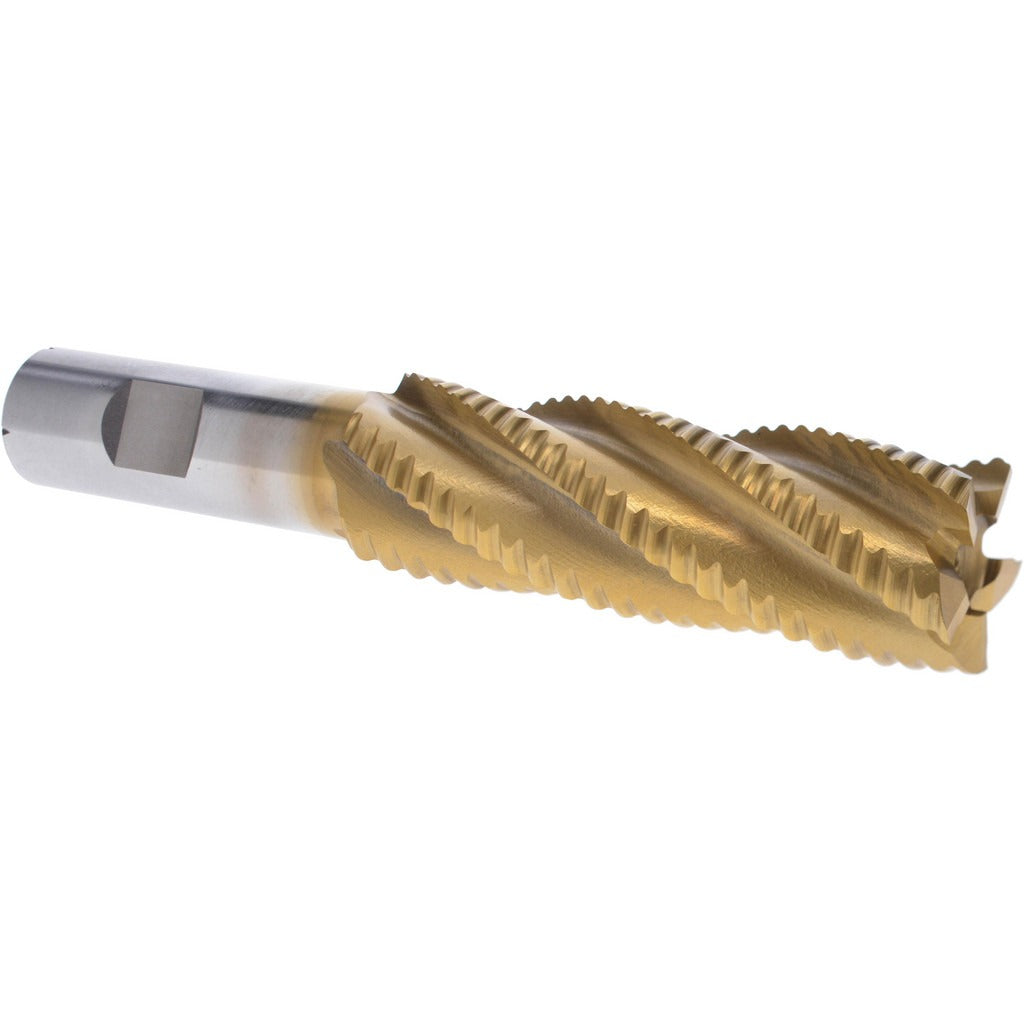

The VALUE COLLECTION 723-6796 is a single-end roughing end mill designed for aggressive material removal in milling applications. Built from M42 cobalt high-speed steel and finished with a TiN (titanium nitride) coating, this tool handles tough ferrous and non-ferrous materials with good wear resistance and heat tolerance. It features a 1-inch cutting diameter, 5 flutes for efficient chip evacuation, and a 3/4-inch shank diameter. With a 3-inch length of cut and a 5-1/4-inch overall length, it suits deep-pocket and slot milling passes where extended reach is not required. Right-hand cutting and right-hand flute direction are standard. This end mill is not center-cutting.

This roughing end mill is suited for use on vertical mills, knee mills, and CNC machining centers in job shop, production, and maintenance environments. Its 5-flute geometry and TiN coating make it appropriate for roughing passes in steel, stainless, and similar alloys where tool life and chip load per tooth matter. It is a single-end tool, meaning it is replaced rather than reversed when the cutting edge is worn.

Key Features

• 1-inch cutting diameter with 3-inch length of cut for deep-pocket roughing
• M42 cobalt HSS construction for improved hot hardness and wear resistance over standard M2
• TiN coating reduces friction and extends tool life in ferrous materials
• 5-flute design increases material removal rate compared to standard 4-flute geometry
• 3/4-inch shank diameter for secure collet or end mill holder retention
• Right-hand cut, right-hand flute — compatible with standard CNC and manual spindle rotation

Compatibility

Designed as a standard single-end roughing end mill with a 3/4-inch shank, suitable for use in collet chucks, end mill holders, and Weldon-style tool holders configured for 3/4-inch shanks on vertical mills and machining centers.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Ensure the machine spindle is fully stopped and locked out before inserting or removing the end mill from the holder. Verify shank seating depth and holder torque per the tool holder manufacturer's specifications. This tool is not center-cutting and should not be plunged directly into solid material without a pre-drilled entry point or ramping toolpath.
