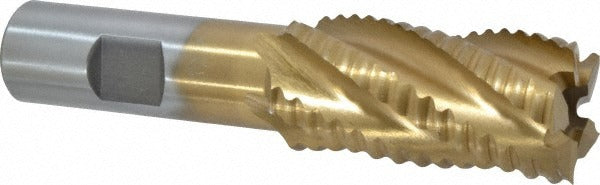

Value Collection 723-6795 Roughing End Mill 1 in 5 Flute Cobalt

Product Description

The VALUE COLLECTION 723-6795 is a single-end roughing end mill designed for aggressive material removal in milling operations. Built from M42 cobalt high-speed steel and finished with a TiN (titanium nitride) coating, it handles tough ferrous and non-ferrous materials while maintaining edge life under heat. The cutter measures 1 inch in diameter with a 3/4-inch shank, a 2-inch length of cut, and a 4.25-inch overall length. With 5 flutes and a right-hand cutting and flute direction, it moves large chip loads efficiently. This tool is used by machinists and toolroom operators on manual mills and CNC machining centers.

This roughing end mill suits production and job-shop environments where rapid stock removal is the priority before a finishing pass. It is appropriate for slotting, peripheral milling, and hogging operations on steel, stainless, cast iron, and similar materials. The non-centercutting geometry means it is intended for side milling and ramping entry rather than direct plunging. The TiN coating adds surface hardness and reduces friction, extending tool life in higher-speed applications.

Key Features

• M42 cobalt HSS construction for heat resistance and toughness in hard materials
• TiN coating reduces friction and extends cutting edge life
• 5-flute design increases feed rates compared to 2- or 4-flute roughers
• Right-hand cut and right-hand helix for standard milling machine spindle direction
• Non-centercutting geometry suited for side milling and peripheral roughing
• 3/4-inch shank diameter fits standard ER and side-lock toolholders

Compatibility

Designed as an OEM-style replacement or direct-fit roughing end mill for manual knee mills and CNC machining centers accepting a 3/4-inch shank.

Installation Notes

Installation is performed by machinists using an appropriate collet chuck, end mill holder, or side-lock holder rated for the 3/4-inch shank diameter. Confirm the spindle is fully stopped and the machine is in an e-stop or locked-out state before loading or changing the tool. Inspect the shank and holder bore for chips or damage before seating. Follow the tool manufacturer and machine OEM guidelines for runout tolerance and holder torque specifications.
