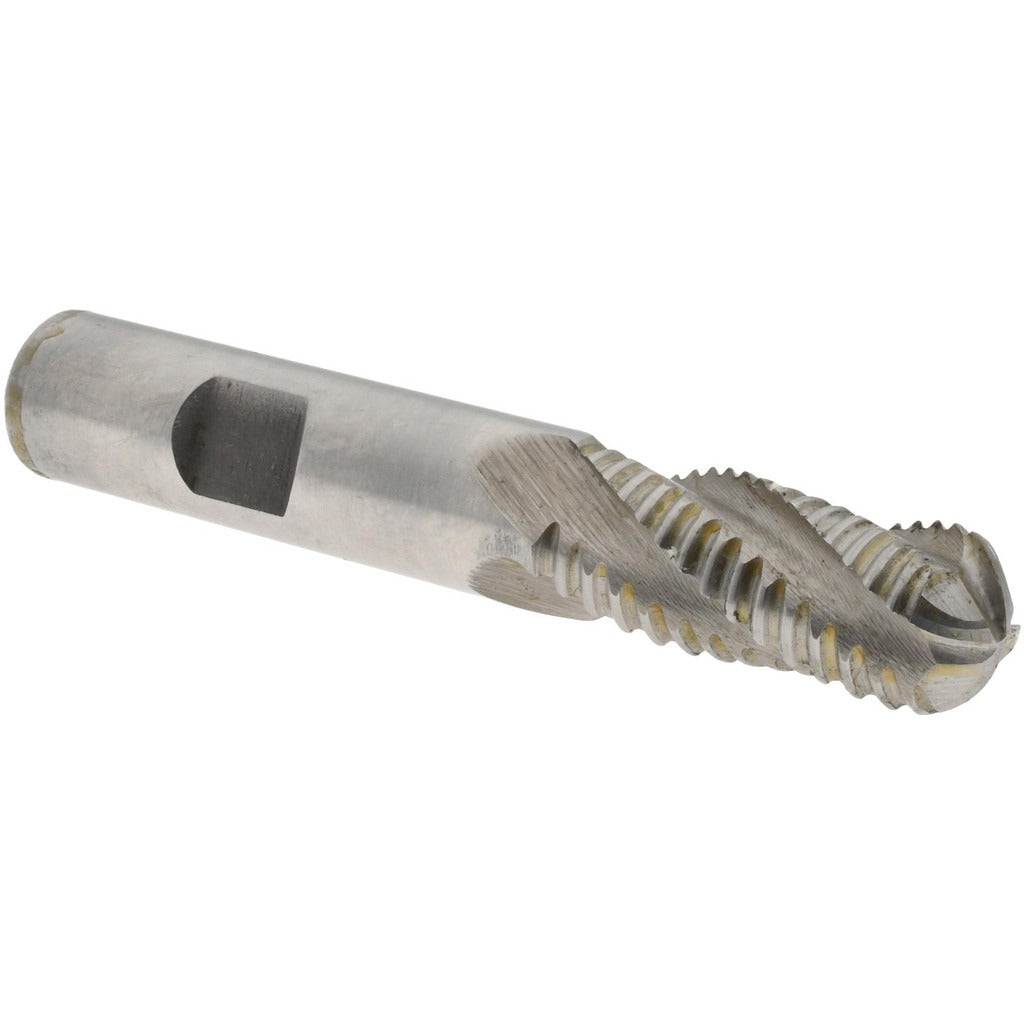

Value Collection 723-5520 Roughing End Mill 0.5in Cobalt M42

Product Description

The VALUE COLLECTION 723-5520 is a single-end roughing end mill designed for aggressive material removal in milling operations. Built from M42 cobalt high-speed steel with a bright, uncoated finish, it delivers the heat and wear resistance needed for tough ferrous and non-ferrous materials. The 0.5 inch diameter tool features 4 right-hand flutes with a coarse pitch designed to break up chips and reduce cutting forces. The 1.25 inch length of cut and 3.25 inch overall length suit standard vertical and horizontal milling machine setups. This tool is installed and operated by machinists and tool-and-die professionals in production and job-shop environments.

This roughing end mill is suited for roughing passes on ferrous metals, stainless steels, and high-temperature alloys where a standard HSS end mill would overheat or wear prematurely. The coarse pitch flute geometry promotes chip evacuation and reduces chatter during deep cuts. Right-hand cutting and right-hand flute direction make it compatible with conventional CNC mills and manual knee mills running standard spindle rotation. It is not center-cutting and should not be used for direct plunge cuts.

Key Features

• M42 cobalt HSS construction for elevated heat resistance and edge retention
• Coarse pitch, 4-flute design promotes aggressive chip breaking and evacuation
• Bright uncoated finish compatible with cutting fluid and oil applications
• Right-hand cut and right-hand flute direction for standard spindle setups
• Single-end configuration with 1.25 inch length of cut
• Not center-cutting — suited for peripheral and slot milling, not direct plunge entry

Compatibility

Designed as a standard 0.5 inch shank roughing end mill suitable for use in collet chucks, end mill holders, and milling machine spindles accepting 0.5 inch shanks.

Installation Notes

Installation should be performed by a qualified machinist following shop safety protocols. Ensure the machine spindle is fully stopped and locked out before inserting or removing the tool. Seat the shank fully into the holder and torque set screws or collet nuts per toolholder manufacturer specifications. Confirm proper cutter runout with a dial indicator before beginning a cut, and verify that cutting direction and spindle rotation match the tool geometry.
