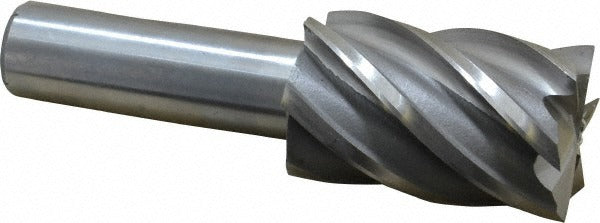

Value Collection 723-3930 Square End Mill 6 Flute Cobalt

Product Description

The VALUE COLLECTION 723-3930 is a single-end cobalt square end mill designed for milling ferrous and hard materials in machining centers and manual mills. Ground from M42 cobalt high-speed steel, it holds an edge longer than standard M2 HSS tooling when cutting alloy steels, stainless, and cast iron. The cutter measures 1.3125 inches in diameter with a 2-inch length of cut, a 0.75-inch shank diameter, and a 4.375-inch overall length. Six spiral flutes with a 30-degree helix angle provide a balance of chip evacuation and cutting edge strength. This is an uncoated bright-finish tool sold as a single unit.

This end mill is suited for peripheral milling, slotting, and side milling operations in job shops, production facilities, and tool rooms. The centercutting geometry allows plunge entry without a pre-drilled hole, making it practical for pocketing operations. It is intended for use in CNC machining centers and manual knee mills where a 3/4-inch straight shank fits a standard collet or end mill holder. Regular-length geometry fits the majority of general-purpose milling setups without requiring extended-reach toolholding.

Key Features

• M42 cobalt HSS construction for improved heat and wear resistance over standard M2 tooling
• Six flutes for a higher finish quality and increased feed rate capability compared to four-flute designs
• 30-degree helix angle balances chip flow and radial cutting force
• Centercutting design permits plunge milling without a pilot hole
• Right-hand cut and right-hand spiral flute — compatible with standard spindle rotation
• Bright uncoated finish suitable for use with cutting fluid on ferrous materials

Compatibility

Designed for use in any machining center or manual mill equipped with a 3/4-inch collet, end mill holder, or Weldon-style holder. Fits standard fractional-inch toolholding systems.

Installation Notes

Installation and tool changes must be performed with the machine spindle fully stopped and locked out per OSHA lockout/tagout procedures. Seat the shank fully into the holder and torque the setscrew or collet nut to the toolholder manufacturer specification. Inspect the cutting edges for chips or damage before each use — a chipped flute on a high-diameter cutter can cause workpiece damage or tool pull-out. Use appropriate cutting fluid for the workpiece material to extend tool life and maintain surface finish.
