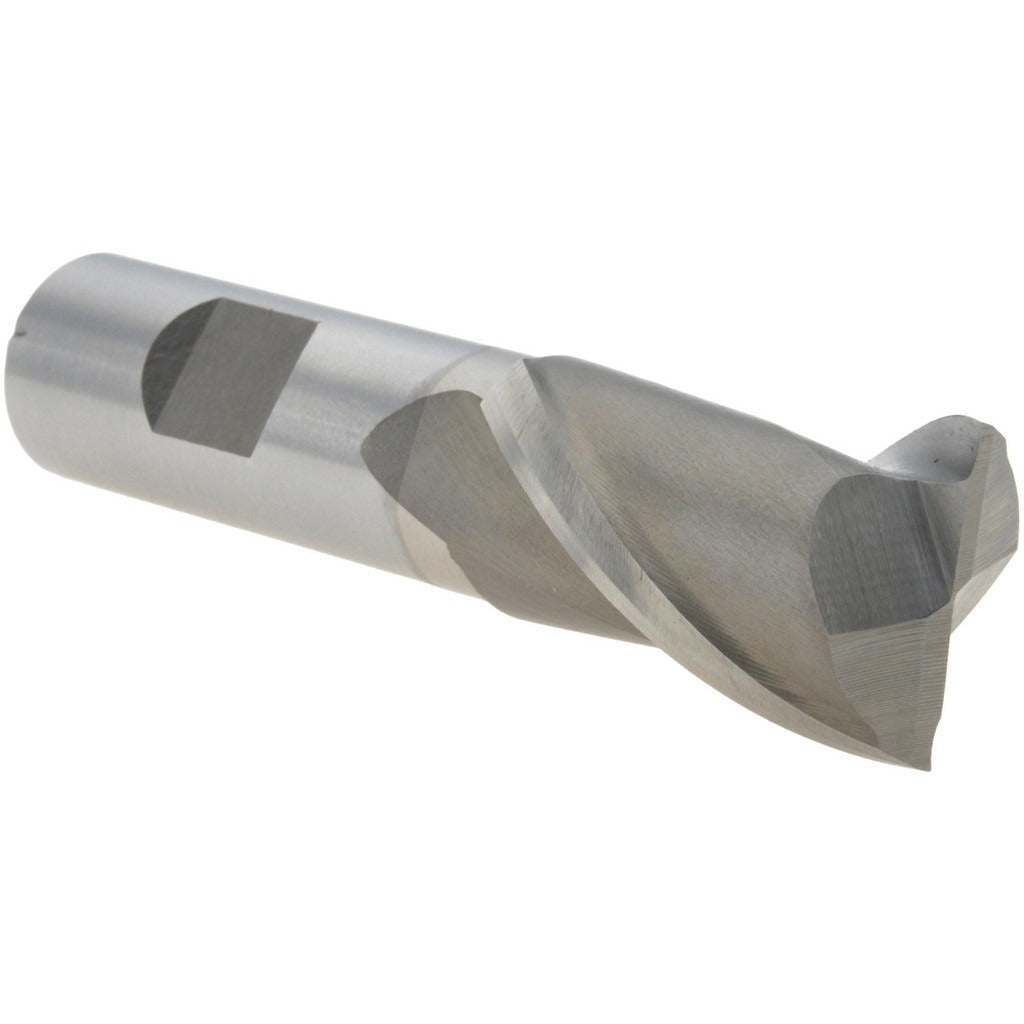

Value Collection 723-1103 Square End Mill 1 in 2 Flute Cobalt

Product Description

The VALUE COLLECTION 723-1103 is a 2-flute cobalt square end mill designed for metal removal in milling operations on steel, stainless steel, cast iron, and high-temperature alloys. Built from M42 cobalt high-speed steel, it offers improved heat and wear resistance compared to standard HSS tooling. The 1-inch cutting diameter and 1-1/2-inch length of cut make it well suited for slotting, profiling, and peripheral milling at regular reach. The 30-degree helix angle promotes efficient chip evacuation and smooth cutting action. This is a single-end, right-hand cut, right-hand flute tool with a bright/uncoated finish and a 3/4-inch shank diameter.

This end mill is used in manual and CNC milling applications across job shops, maintenance facilities, and production environments. It is appropriate for cutting steel and stainless steel workpieces where a cobalt-grade tool is specified for better performance than standard HSS. The centercutting geometry allows plunge entry as well as conventional slot and profile cuts. Typical setups include vertical mills, knee mills, and machining centers using R8, CAT, BT, or similar toolholding systems with a 3/4-inch collet or end mill holder.

Key Features

• M42 cobalt construction for improved heat resistance in ferrous and high-temp alloy cutting
• 2-flute design with 30-degree right-hand spiral helix for efficient chip clearance
• Centercutting — capable of plunge milling and slot entry
• Bright/uncoated finish — no coating buildup, easy to resharpen
• Single-end configuration with 3/4-inch straight shank
• Right-hand cut for standard spindle rotation

Compatibility

Designed for use on steel, stainless steel, cast iron, and high-temperature alloy workpieces. Compatible with standard 3/4-inch end mill holders, collet chucks, and milling machine spindles accepting a 3/4-inch shank.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the milling machine spindle is fully stopped and locked before changing tooling. Seat the shank fully in the holder and tighten set screws or collet nuts to the holder manufacturer's specification. Verify runout with a dial indicator before engaging the cut, and confirm feed and speed parameters are appropriate for the workpiece material and depth of cut.
