Value Collection 722-4084 Square End Mill 1 in 4 Flute Hss

Product Description

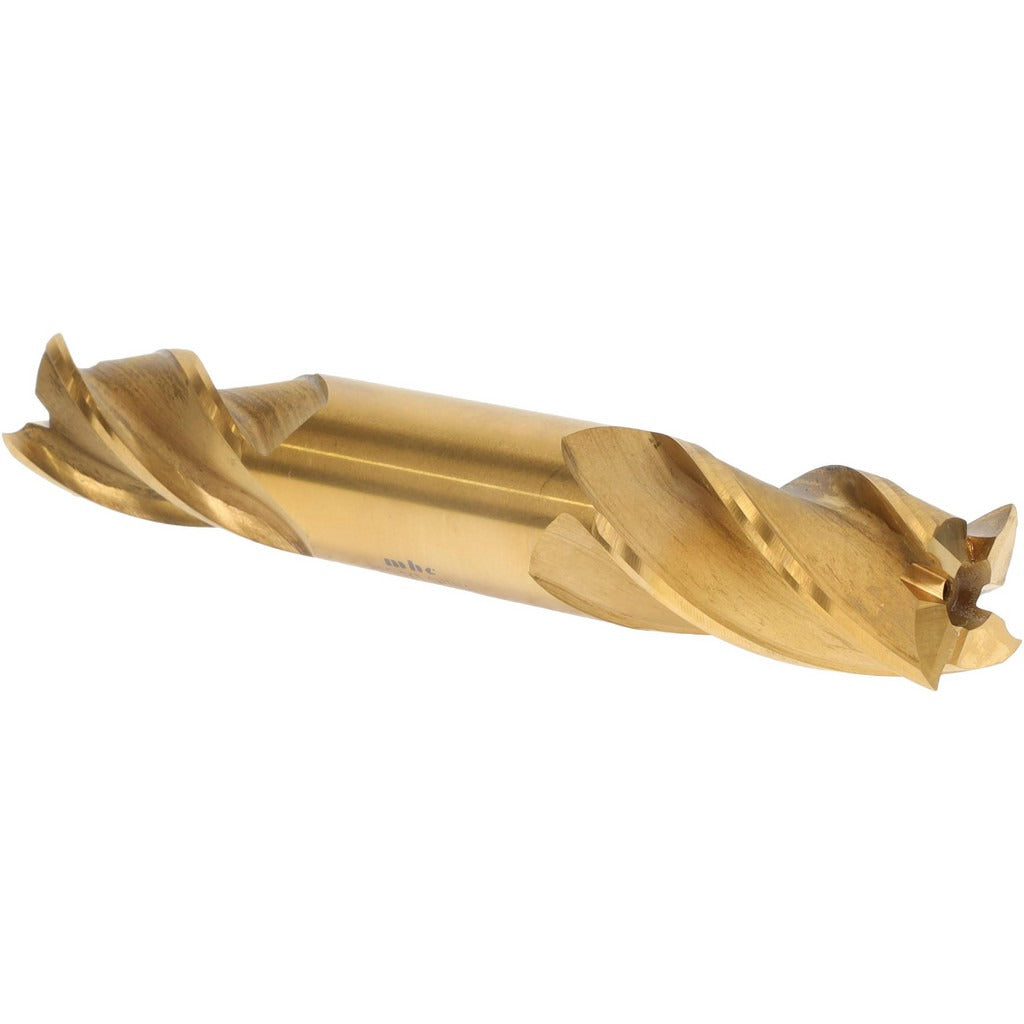

The VALUE COLLECTION 722-4084 is a double-end, four-flute square end mill designed for general-purpose milling operations in metal fabrication and machine shop environments. Manufactured from M2 high speed steel with a TiN (titanium nitride) coating, this tool delivers improved surface hardness and extended tool life compared to uncoated HSS tooling. It measures 1 inch in diameter with a 1-7/8 inch length of cut and a 6-3/8 inch overall length. The 30-degree helix angle promotes efficient chip evacuation during side milling and slotting. Machinists and toolroom operators are the primary users of this end mill.

This end mill is suited for use in vertical milling machines, manual knee mills, and CNC machining centers where fractional-inch tooling is standard. The double-end configuration provides two usable cutting ends, extending the service life of each tool. The right-hand cut and right-hand flute direction make it compatible with standard spindle rotation. It is not center-cutting, so it is not intended for plunge operations. Applications include shoulder milling, slotting, and profile milling in ferrous and non-ferrous materials.

Key Features

• M2 high speed steel construction for toughness and wear resistance
• TiN coating increases surface hardness and reduces friction at the cutting edge
• Double-end design provides two cutting ends per tool
• 30-degree helix angle supports efficient chip flow in slotting and side milling
• Right-hand cut, right-hand spiral flutes compatible with standard mill spindle rotation
• Non-center-cutting geometry — not designed for plunge or drilling operations

Compatibility

Designed for use in standard milling machine spindles and collet systems accepting a 1 inch shank diameter in fractional-inch tooling series.

Installation Notes

Installation and tool changes must be performed with the machine powered down and the spindle fully stopped. A properly sized collet or end mill holder rated for 1 inch shank tooling is required to ensure secure clamping and minimize runout. Confirm that the holder is torqued to the machine manufacturer's specification before operation. Because this tool is not center-cutting, establish depth of cut using a ramping or side-entry approach rather than direct plunge.
