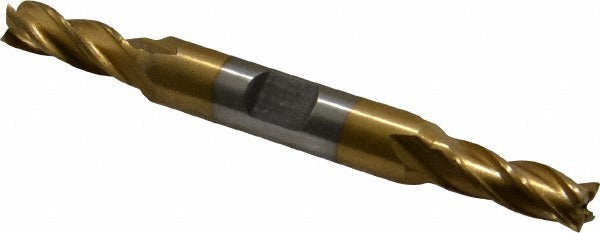

Value Collection 722-4024 Square End Mill 9/32 in 4 Flute Hss

Product Description

The VALUE COLLECTION 722-4024 is a double-end square end mill designed for milling operations on ferrous and non-ferrous metals in CNC and manual machining environments. Built from M2 high speed steel with a titanium nitride (TiN) coating, it delivers extended tool life and reduced friction at the cutting edge. The 9/32 inch (0.2813 inch) diameter paired with a 4-flute spiral geometry produces smooth surface finishes on slots, pockets, and profile cuts. The double-end configuration means both ends are usable, extending the effective service life of each tool. Machinists and toolroom operators install this end mill in standard toolholders and collet chucks on mills and machining centers.

This end mill suits light-to-moderate material removal in general machining applications. The 11/16 inch length of cut (0.6875 inch) and 3-3/8 inch overall length make it appropriate for shallow-to-medium-depth slot and pocket work. The 3/8 inch shank fits standard collet sizes common on knee mills, benchtop mills, and CNC machining centers. The 30-degree helix angle promotes efficient chip evacuation during right-hand cutting operations, reducing heat buildup in the cut zone.

Key Features

• Double-end design provides two usable cutting ends per tool
• TiN coating reduces friction and extends cutting edge life
• M2 high speed steel construction handles a wide range of workpiece materials
• 30-degree helix angle with right-hand cut and right-hand spiral flute for efficient chip evacuation
• 4-flute configuration delivers improved surface finish on finish passes
• Spiral flute geometry with square end profile for slot milling, profiling, and facing

Compatibility

Designed for use in standard 3/8 inch collets and toolholders on CNC machining centers, knee mills, and manual milling machines. Part of the VCDE-HSS-4-TN series of fractional-inch double-end high speed steel end mills.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. Ensure the machine spindle is fully stopped and the machine is powered off before installing or changing tooling. Seat the shank fully into the collet or toolholder and torque the retention hardware according to the toolholder manufacturer specifications. This end mill is not center-cutting and should not be used for direct plunge operations into solid material.
