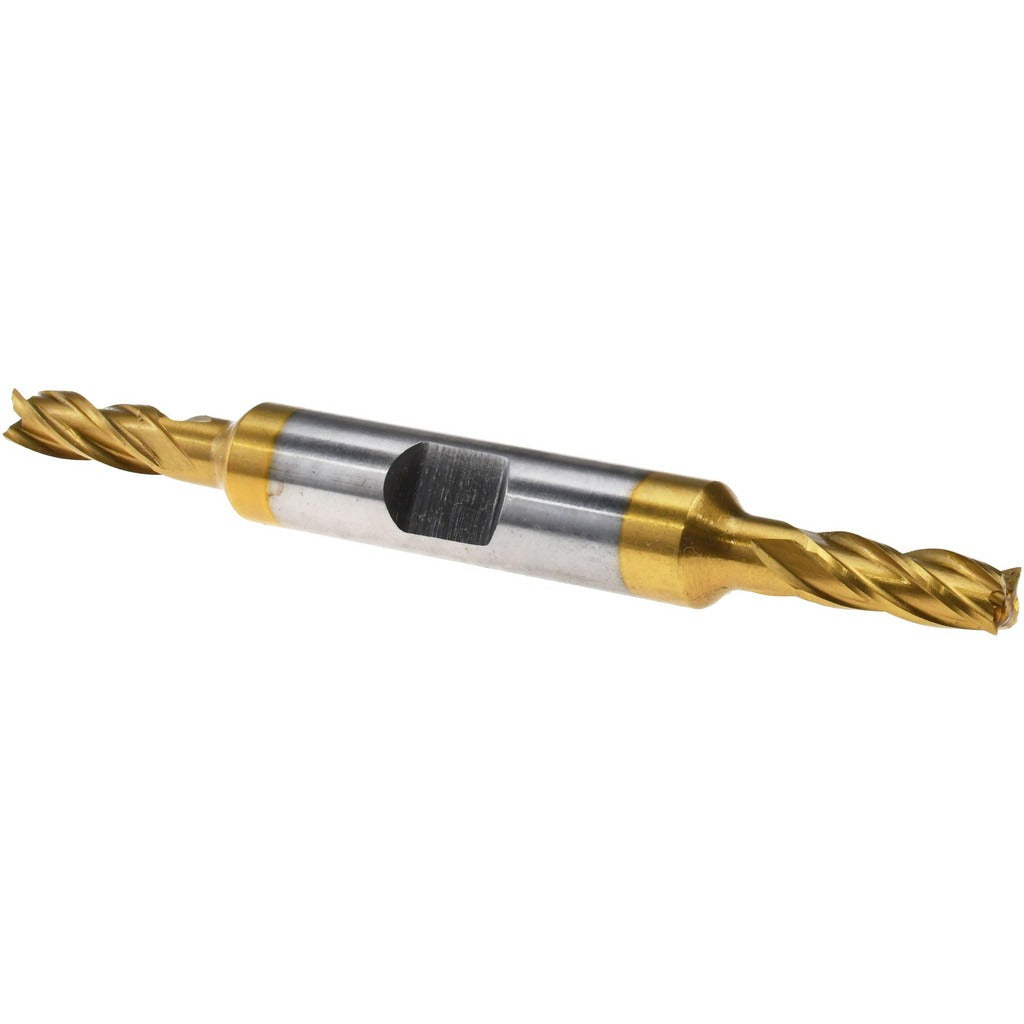

Value Collection 722-4016 Square End Mill 7/32in 4 Flute Hss

Product Description

The VALUE COLLECTION 722-4016 is a double-end, four-flute square end mill designed for general-purpose milling operations in metal fabrication and machining environments. Built from M2 high speed steel with a titanium nitride (TiN) coating, it delivers extended tool life and reduced friction during cuts. The mill features a 7/32 inch (0.2188 inch) cutting diameter, a 9/16 inch (0.5625 inch) length of cut, and a 3/8 inch shank diameter. A 30-degree helix angle promotes smooth chip evacuation in a variety of materials. This tool is installed and operated by machinists and tool-and-die professionals using standard milling machines or CNC machining centers.

This end mill is suited for slotting, profiling, and peripheral milling in ferrous and non-ferrous materials at conventional cutting speeds. The double-end configuration provides two usable cutting ends per tool, extending service intervals. The right-hand cut and right-hand flute spiral are standard for conventional milling setups. It is appropriate for use in job shops, maintenance machining, and production environments where fractional-inch tooling is specified. The tool does not support center cutting, so plunge entry is not recommended.

Key Features

• M2 high speed steel construction for toughness across a wide range of workpiece materials
• TiN coating reduces friction and increases surface hardness for longer tool life
• Double-end design provides two cutting ends, improving cost-per-use efficiency
• 30-degree helix angle promotes efficient chip flow and reduces cutting forces
• Right-hand cut and right-hand spiral flute direction — compatible with standard milling setups
• Non-center-cutting geometry — designed for side milling, slotting, and profiling, not plunge entry

Compatibility

Designed as an OEM-style replacement or standard tooling option for milling machines and CNC machining centers that accept a 3/8 inch straight shank end mill in fractional-inch tooling systems.

Installation Notes

Installation should be performed by a qualified machinist following standard tool-change procedures for the machine in use. Always power down the spindle and confirm it has come to a full stop before changing tooling. Secure the shank fully in the tool holder or collet to the manufacturer-specified engagement depth to prevent pullout during operation. This tool is not center-cutting — do not use for direct plunge milling without a pre-drilled entry point.
