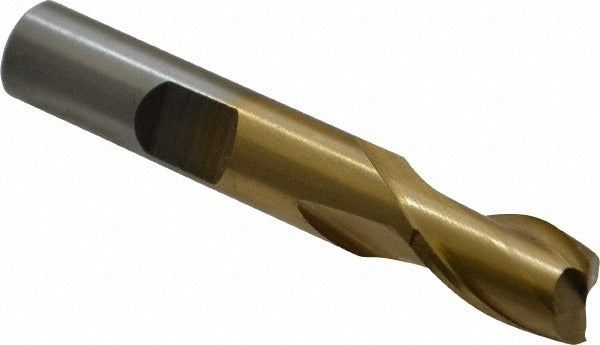

Value Collection 722-1033 Square End Mill 3/8in 2-flute Hss

Product Description

The VALUE COLLECTION 722-1033 is a single-end square end mill designed for general-purpose milling operations in machine shops and production environments. Built from M2 high speed steel with a titanium nitride (TiN) coating, this tool delivers solid wear resistance and heat tolerance across a range of common workpiece materials. It features a 3/8 inch cutting diameter, a 9/16 inch length of cut, and a 30-degree spiral helix angle. The centercutting geometry allows the tool to plunge directly into material as well as perform standard peripheral and slot milling. Installation and use are handled by machinists and CNC operators working with vertical mills, knee mills, and machining centers.

This end mill suits light to medium material removal in ferrous and non-ferrous metals, plastics, and composites. The regular-length body and 3/8 inch straight shank fit standard ER collets and end mill holders commonly found in job shop and production floor setups. The right-hand cut and right-hand flute configuration is the standard orientation for conventional milling spindles. The two-flute design provides good chip clearance, making it a practical choice for slotting and profiling operations where chip evacuation is a priority.

Key Features

• M2 high speed steel construction for toughness and grindability
• TiN coating increases surface hardness and extends tool life compared to uncoated HSS
• Centercutting design allows direct plunge entry without pre-drilling
• 30-degree helix angle promotes smooth cutting action and reduced chatter
• Two-flute configuration maximizes chip clearance for slotting and deep-pocket work
• Right-hand cut, right-hand flute — compatible with standard CNC and manual mill spindles

Compatibility

Designed as an OEM-style replacement or standard tooling option for 3/8 inch end mill holders, ER collet chucks, and straight-shank tool holders used in vertical machining centers and manual knee mills.

Installation Notes

This end mill is installed and operated by machinists and CNC technicians. Power down and lock out the spindle before loading or removing the tool from the holder. Use a calibrated torque wrench when tightening collet nuts to manufacturer specifications for the holder in use. Inspect the tool shank and cutting edges for damage before each use, and verify runout with a dial indicator after seating the tool in the holder.
