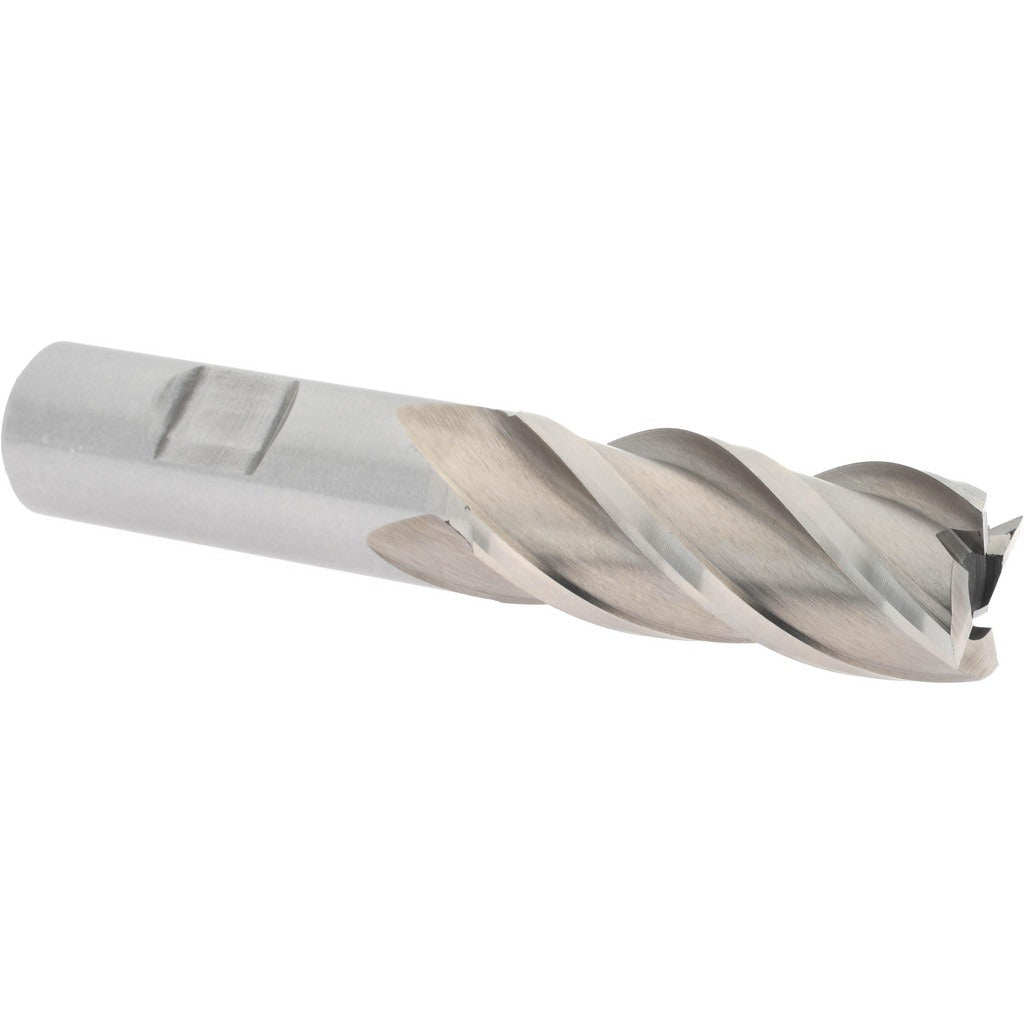

Value Collection 720-3075 Square End Mill 13/16 in 4 Flute Hss

Product Description

The VALUE COLLECTION 720-3075 is a single-end, square-profile end mill manufactured from M2 high speed steel with a bright, uncoated finish. It carries a 13/16-inch (0.8125 inch) cutting diameter, a 1-7/8-inch length of cut, and a 30-degree helix angle with four right-hand spiral flutes. Designed for general-purpose milling operations, this tool is suited for machinists and tool-and-die professionals running manual mills or CNC machining centers where a reliable, uncoated HSS end mill is appropriate for the material and feed conditions at hand.

This end mill is intended for use in typical shop milling applications including slotting, profiling, and peripheral cutting on ferrous and non-ferrous workpiece materials where high speed steel tooling is specified. The 3/4-inch shank diameter fits standard R8, CAT, BT, and other common tool holders that accept a 3/4-inch straight shank. The regular-length geometry and 4-1/8-inch overall length make it a practical choice for setups with moderate reach requirements.

Key Features

• M2 high speed steel construction for general-purpose milling durability
• Four right-hand spiral flutes with 30-degree helix angle for efficient chip evacuation
• Bright/uncoated finish compatible with cutting fluids and standard lubrication practices
• Single-end design with square cutting profile for slotting, facing, and profiling
• 3/4-inch straight shank fits widely available toolholders and collet systems
• Regular-length body at 4-1/8 inches overall length for stable, low-deflection setups

Compatibility

Designed as a standard replacement or stock end mill for any milling setup requiring a 3/4-inch straight shank and 13/16-inch cutting diameter in a four-flute, single-end HSS configuration.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer guidelines for tool holding and runout tolerances. Power down and lock out the spindle before seating or removing the tool from its holder. Ensure the shank is fully seated and the set screw or collet is torqued to the toolholder specification. Confirm cutting direction is set to right-hand before operation, as this tool cuts right-hand only.
