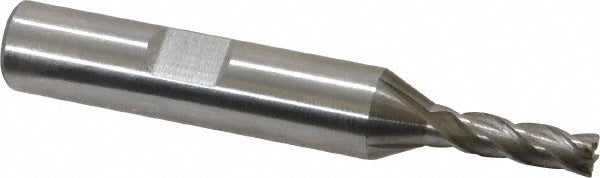

Value Collection 720-3009 Square End Mill 11/64 in 4 Flute Hss

Product Description

The VALUE COLLECTION 720-3009 is a single-end square end mill designed for general-purpose milling operations in ferrous and non-ferrous materials. Built from M2 high speed steel with a bright, uncoated finish, this tool features four spiral flutes with a 30-degree helix angle and a right-hand cut and right-hand flute orientation. The 11/64-inch (0.1719 inch) cutting diameter and 7/16-inch length of cut make it well suited for slotting, profiling, and peripheral milling in light- to medium-duty CNC and manual milling applications. Licensed machinists and tool-and-die professionals are the primary installers.

This end mill is appropriate for use on knee mills, vertical machining centers, and manual milling machines where a fractional-inch, regular-length tool is required. The 3/8-inch shank diameter fits standard ER collets, end mill holders, and side-lock holders commonly found in job shop and production environments. The uncoated finish is best suited for dry cutting or applications with flood coolant on aluminum, mild steel, and similar workpiece materials. It is not centercutting, so plunge milling is not recommended without a pre-drilled pilot hole.

Key Features

• M2 high speed steel construction for toughness and re-sharpenability
• Four spiral flutes with 30-degree helix angle for efficient chip evacuation
• Right-hand cut, right-hand flute — standard orientation for conventional and climb milling
• Bright/uncoated finish — compatible with flood coolant and dry cutting
• Regular length series for rigidity in close-tolerance milling setups
• Not centercutting — suited for peripheral and slot milling, not direct plunge entry

Compatibility

Designed as a regular-length, fractional-inch single-end square end mill for use in standard end mill holders, ER collet chucks, and side-lock holders accepting a 3/8-inch shank diameter.

Installation Notes

Installation is performed by machinists and CNC operators following standard tooling changeover procedures. Power down and lock out the spindle before inserting or removing the tool from the holder. Ensure the shank is fully seated and the collet nut or set screw is torqued per the holder manufacturer's specification. Inspect the cutting edges for chips or wear before each use, and never exceed the recommended depth of cut or feed rate for the workpiece material and machine rigidity.
