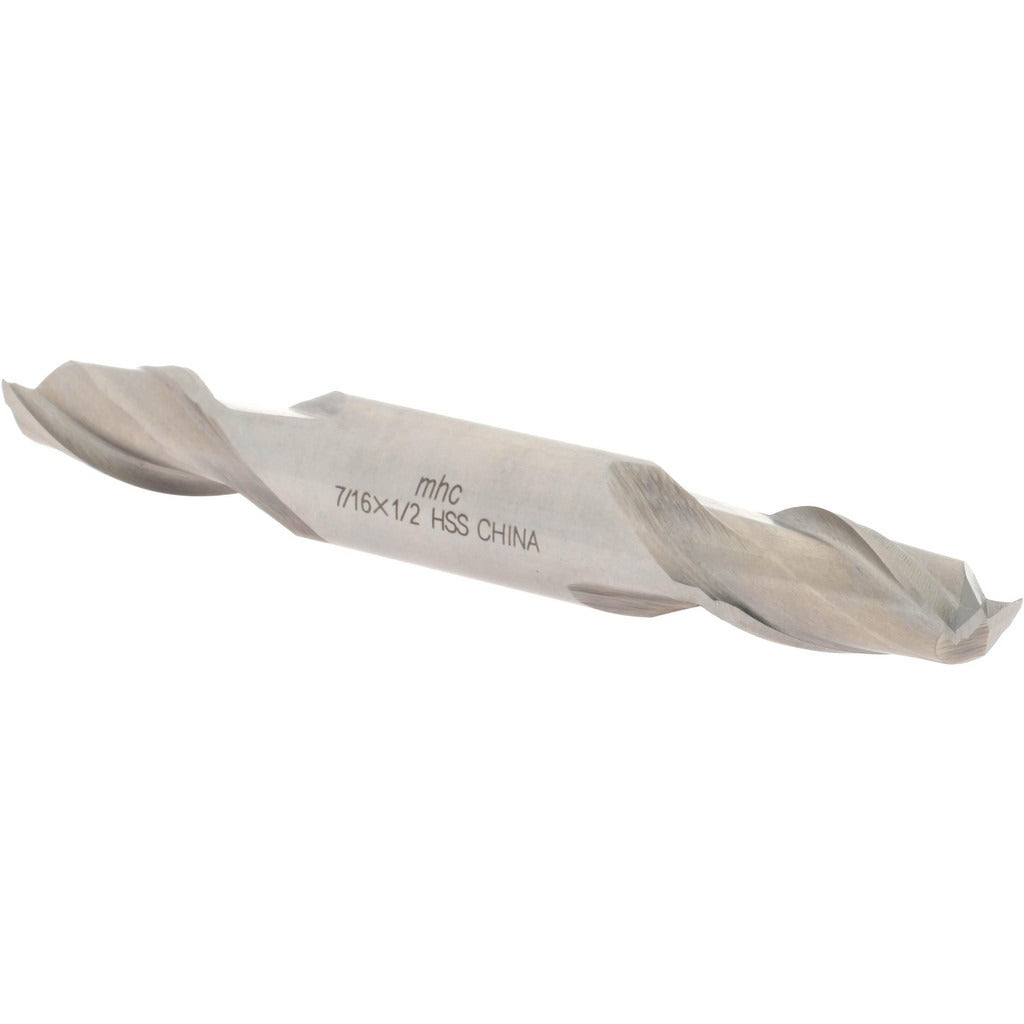

Value Collection 720-2048 Square End Mill 7/16 in 2 Flute Hss

Product Description

The VALUE COLLECTION 720-2048 is a double-end, two-flute square end mill ground from M2 high speed steel and designed for material removal in steel, stainless steel, cast iron, and high-temperature alloy applications. It measures 7/16 inches (0.4375 inches) in cutting diameter with a 13/16 inches (0.8125 inches) length of cut and a 1/2 inches shank diameter. The bright, uncoated finish is standard for M2 HSS tooling. A 30-degree right-hand helix promotes efficient chip evacuation while maintaining edge strength. Center-cutting geometry allows plunge entry as well as peripheral and slot milling operations.

This end mill fits standard milling operations in job shops, maintenance environments, and production settings where HSS tooling is specified. The double-end configuration extends tool life by providing a second usable cutting end. At 3-3/4 inches overall length with a regular length classification, it seats properly in standard milling chucks, collets, and end mill holders across vertical knee mills, CNC machining centers, and manual milling machines. It is suited for cutting steel, stainless steel, cast iron, and high-temp alloys in light-to-medium-duty applications.

Key Features

• Double-end design provides two usable cutting ends, extending tool life per unit
• M2 high speed steel construction balances toughness and wear resistance across ferrous and high-temp alloy materials
• 30-degree right-hand spiral flutes promote efficient chip evacuation and reduce cutting forces
• Center-cutting geometry enables plunge milling as well as side and slot milling
• Bright/uncoated finish — no coating to delaminate; suitable for re-sharpening
• Two-flute configuration provides larger chip gullets for better clearance in softer steels and slotting cuts

Compatibility

Designed for use in standard end mill holders, collet chucks, and milling chucks accepting a 1/2 inches shank diameter. Rated for primary workpiece materials including steel (P), stainless steel (M), cast iron (K), and high-temperature alloys (S) per ISO material classification.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Secure the shank fully within the holder to the minimum insertion depth recommended by the holder manufacturer, ensuring no less than 3 times the shank diameter of engagement. Confirm spindle speed and feed rate are appropriate for the workpiece material and cutting diameter before engaging the cut. Inspect both cutting ends for edge integrity before use and between tool changes.
