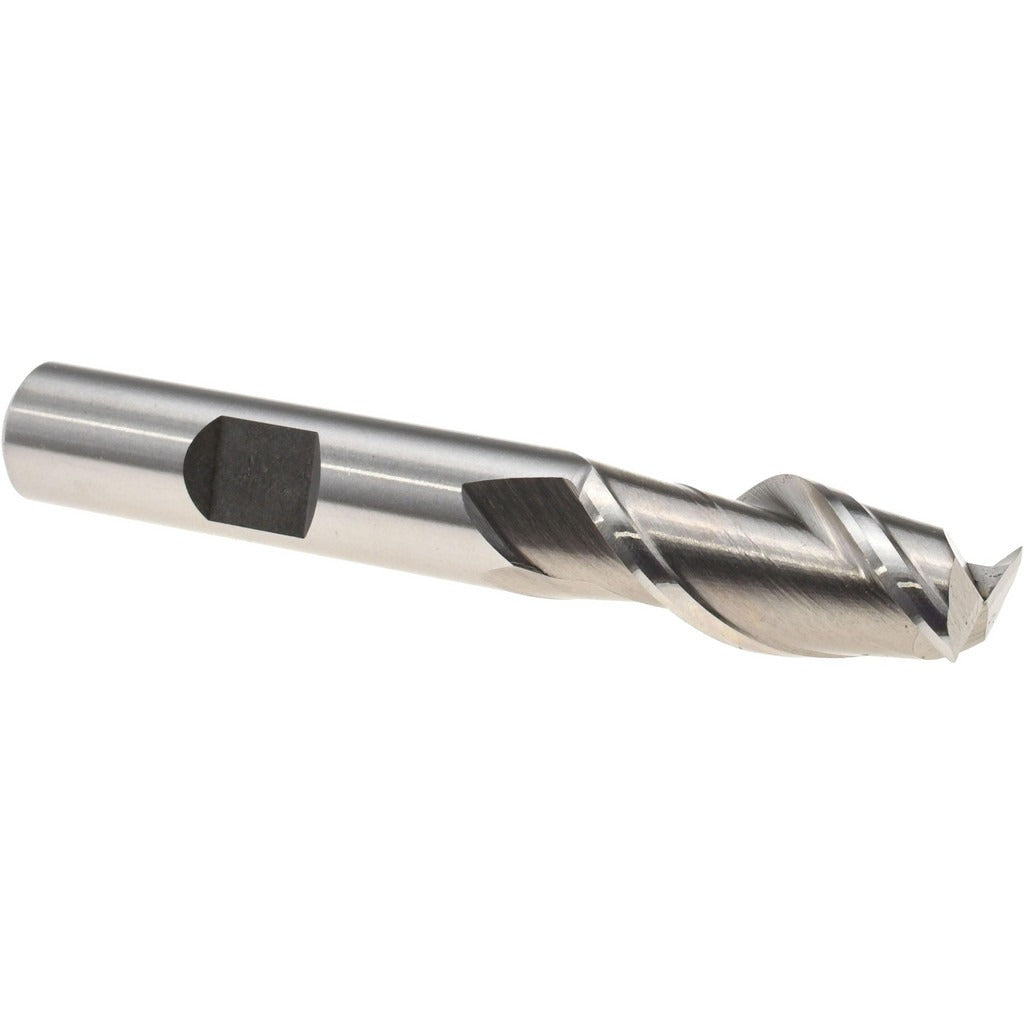

Value Collection 720-1519 Square End Mill 7/16 in Hss

Product Description

The VALUE COLLECTION 720-1519 is a 2-flute, single-end square end mill manufactured from M2 high speed steel. It features a 7/16-inch (0.4375-inch) cutting diameter and a 1-inch length of cut, making it well suited for slotting, profiling, and peripheral milling operations. The bright, uncoated finish is optimized for use in aluminum and non-ferrous materials, where a sharp, low-friction edge is preferred over a coated surface. The 38-degree right-hand spiral flute geometry promotes efficient chip evacuation. This tool is installed by machinists and CNC operators working on mills, machining centers, and manual knee mills.

This end mill is primarily intended for cutting aluminum and other non-ferrous materials, including copper, brass, and plastics. The regular-length configuration and 3/8-inch shank diameter make it compatible with standard R8, ER, and side-lock toolholders commonly found in job shop and production machining environments. It is a centercutting design, which allows plunge cutting in addition to lateral milling passes. The single-end configuration means the tool is replaced rather than flipped when the cutting end wears.

Key Features

• M2 high speed steel construction provides toughness and cost-effective performance in non-ferrous applications
• Bright, uncoated finish optimized for aluminum and non-ferrous workpiece materials
• Centercutting geometry allows direct plunge entry without pre-drilling
• Right-hand cut and right-hand flute spiral for use in standard milling spindles
• 2-flute design promotes chip clearance in gummy or soft materials
• Regular length series for rigid setups with minimal overhang

Compatibility

Designed for use in aluminum and non-ferrous materials. The 3/8-inch shank diameter fits standard collet chucks, ER toolholders, and side-lock holders sized for 3/8-inch shanks on vertical and horizontal milling machines.

Installation Notes

Install in a clean, properly sized collet or toolholder and torque the retention mechanism according to the toolholder manufacturer specification. Verify runout at the cutting diameter before beginning the operation, as excessive runout accelerates wear and reduces surface finish quality. Do not exceed the recommended speeds and feeds for M2 high speed steel in the target workpiece material. Ensure the spindle and toolholder are free of chips or debris before seating the shank.
