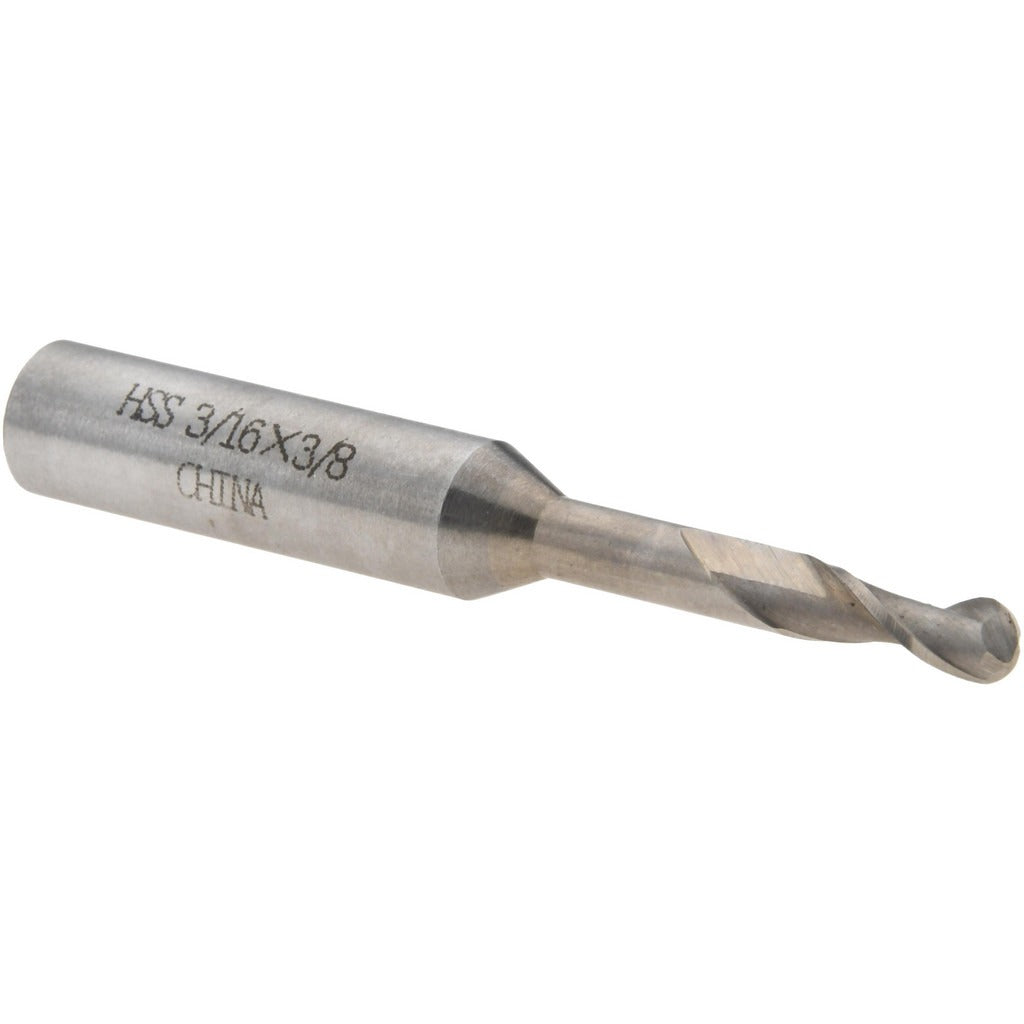

Value Collection 720-1453 Ball End Mill 3/16 in 2 Flute Hss

Product Description

The VALUE COLLECTION 720-1453 is a single-end ball end mill designed for machining contoured surfaces, slots, and pockets where a radiused cutting profile is required. Built from M2 high speed steel with a bright, uncoated finish, this tool delivers reliable performance in general-purpose milling applications on steel, aluminum, and similar materials. The 3/16 inch cutting diameter and 1/2 inch length of cut make it well suited for fine detail work and smaller feature profiles. With a right-hand cutting direction and right-hand spiral flute geometry, it is compatible with standard vertical and CNC milling machine setups operated by machinists and tool-and-die technicians.

This ball end mill is intended for use in job shops, maintenance machining environments, and production settings where smaller diameter end mills are regularly consumed. The 2-flute configuration provides good chip clearance, making it a practical choice when working in softer metals or where chip evacuation is a priority. The extended reach design, with a 1-1/8 inch reach length and 3/8 inch shank diameter, allows access to deeper features while maintaining rigidity in a standard collet or end mill holder.

Key Features

• M2 high speed steel construction for general-purpose cutting performance
• Ball end profile for machining radiused slots, contours, and 3D surface features
• 2-flute spiral design promotes efficient chip evacuation in softer materials
• Right-hand cut and right-hand flute direction compatible with standard milling setups
• Extended reach at 1-1/8 inches for access to deeper pockets and features
• Bright, uncoated finish suitable for use with or without cutting fluid

Compatibility

Designed for use with standard milling machines and CNC machining centers equipped with a collet or end mill holder accepting a 3/8 inch shank diameter.

Installation Notes

Installation should be performed by a qualified machinist following standard tooling setup procedures. Secure the shank fully into the collet or holder to the recommended grip depth before tightening to prevent tool pullout during cutting. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Verify runout after installation and select appropriate feeds and speeds for the workpiece material.
