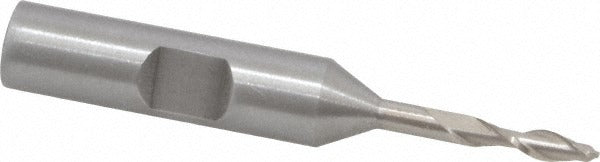

Value Collection 720-1451 Ball End Mill 1/8 in 2 Flute Hss

Product Description

The VALUE COLLECTION 720-1451 is a single-end ball end mill designed for contour milling, slotting, and profiling operations on a wide range of workpiece materials. It measures 1/8 inch in diameter with a 3/8-inch length of cut and a 2-3/8-inch overall length. The cutting geometry features 2 right-hand spiral flutes in a right-hand cutting direction, ground from M2 high speed steel with a bright, uncoated finish. The extended reach design includes a 13/16-inch reach length, making it suited for applications where standard-reach tooling cannot access the cut zone. Machinists and toolroom operators install this end mill in CNC machining centers, knee mills, and manual milling machines.

This end mill is suited for light to medium material removal in ferrous and non-ferrous metals, plastics, and composites where a ball-nose profile is required. The 1/8-inch diameter makes it appropriate for fine detail work, small-radius profiling, and 3D contouring passes in both prototype and production environments. The 3/8-inch shank diameter provides rigid tool holding in standard collet chucks and end mill holders.

Key Features

• 1/8-inch ball nose diameter for fine detail and small-radius contouring
• M2 high speed steel construction for toughness and re-sharpenability
• Bright, uncoated finish suitable for use with or without cutting fluid
• 2-flute right-hand spiral geometry for efficient chip evacuation
• Extended reach with 13/16-inch reach length for deep-pocket access
• Single-end design; 3/8-inch shank diameter for standard tool holding

Compatibility

Designed as a standard single-end ball end mill for use in collet chucks, end mill holders, and compatible tool holding systems accepting a 3/8-inch shank diameter.

Installation Notes

Installation is performed by qualified machinists. Power down and lock out the machine spindle before inserting or removing the end mill from the tool holder. Seat the shank fully into the collet or holder and torque the retention mechanism according to the tool holder manufacturer specifications. Inspect the cutting edges for chips or damage before each use and replace the tool if edge integrity is compromised.
