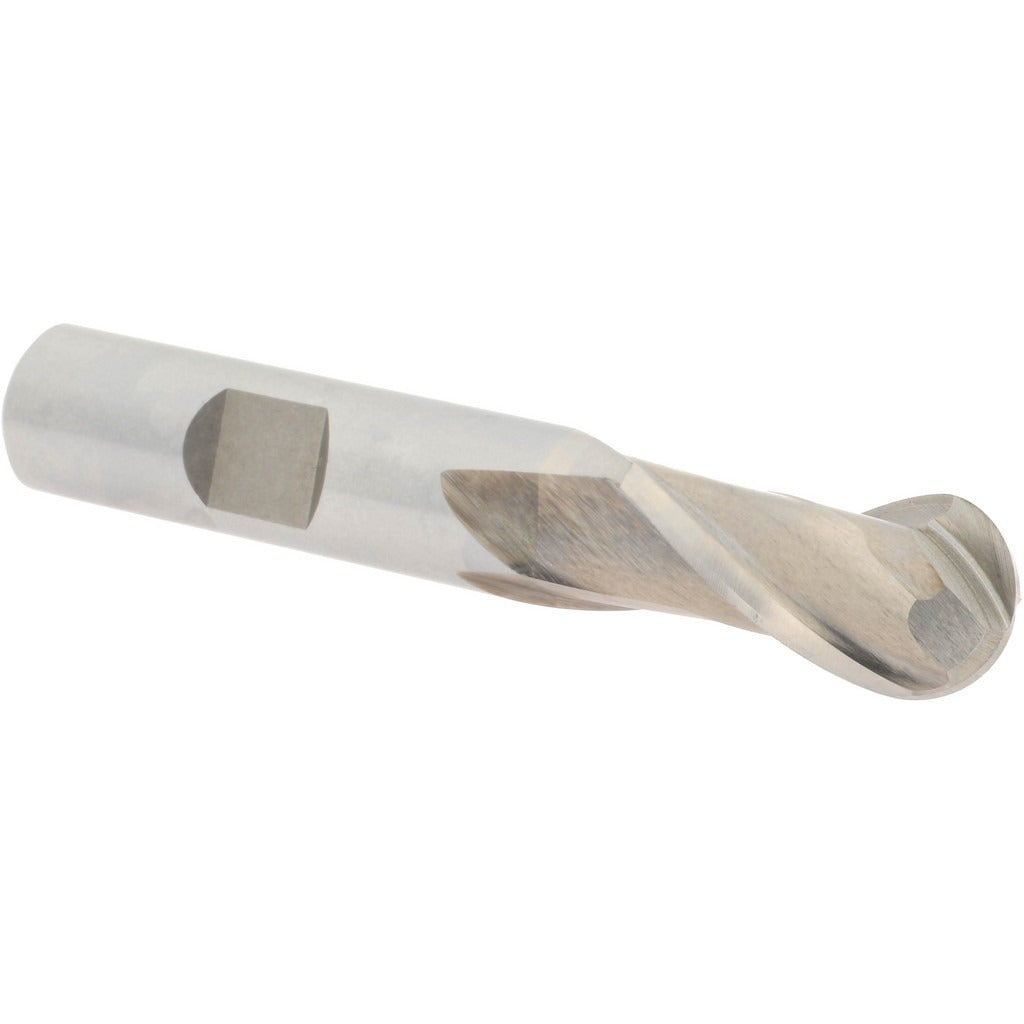

Value Collection 720-1415 Ball End Mill 9/16 in 2 Flute Hss

Product Description

The VALUE COLLECTION 720-1415 is a single-end ball end mill designed for contour milling, slotting, and profiling operations on ferrous and non-ferrous materials. Built from M2 high speed steel with a bright uncoated finish, this tool features a 9/16 inch cutting diameter and a 1 inch length of cut. The 2-flute spiral geometry with right-hand cutting and right-hand flute direction provides efficient chip evacuation and clean surface finishes. The standard-length design keeps the tool rigid under load, making it a reliable choice for manual mills, knee mills, and CNC machining centers. Machinists and tool-and-die professionals use this end mill for general-purpose milling work.

This ball end mill suits general machining applications in job shops, maintenance facilities, and production environments. The ball-nose profile is suited for 3D contouring passes, radius slot cutting, and blending transitions between features. The 1/2 inch shank diameter accommodates standard R8, ER, and side-lock toolholders commonly found in vertical machining centers and manual mills. The 3 inch overall length provides adequate reach for typical workpiece clearance without sacrificing stiffness.

Key Features

• M2 high speed steel construction for durability across a range of workpiece materials
• Ball-nose geometry suited for 3D contouring, radius slots, and blended surface passes
• 2-flute spiral design with right-hand cut and right-hand helix for efficient chip removal
• Bright uncoated finish compatible with cutting oils and standard coolants
• Single-end configuration with a 1/2 inch shank for secure toolholder engagement
• Standard length at 3 inches overall for balanced reach and rigidity

Compatibility

Designed as a standard-profile replacement or production ball end mill fitting any toolholder with a 1/2 inch bore, including R8 collets, ER collet chucks, and side-lock holders used on vertical mills and machining centers.

Installation Notes

Install in a clean, properly sized collet or toolholder and torque to the toolholder specification before running. Ensure the spindle is fully stopped and the machine is powered down before changing or indexing tooling. Follow your machine shop safety procedures and applicable OSHA machining guidelines when operating end mills. Inspect the cutting edges for chips or wear before each use and replace the tool if edge integrity is compromised.
